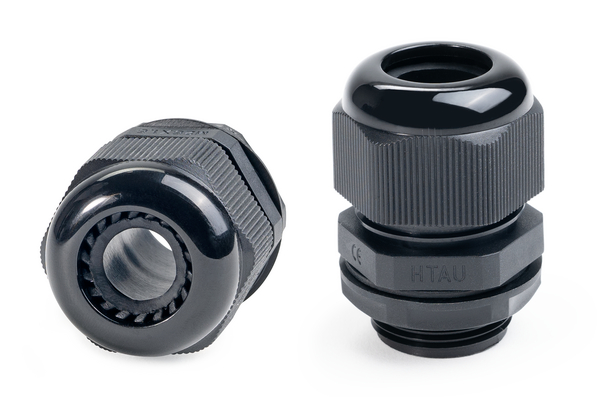

IP68 cable gland for ⌀ cable size 13 - 18mm, M25, 20pcs, black
Art.-No. 924-00310 | NG25-PA6/EPDM-BK

Copied
  • Instantaneous heat up to 120 °C
  • 5 bar pressure
  • High torque tightening
  • Large cable range
  • Long metric thread
  • EPDM rubber washer
  • UV stabilised
  • Vibration resistant

Request your individual offer now

Application Nylon glands offer a dependable solution for securing and protecting cables in electrical enclosures, machinery and industrial installations. Manufactured from high-quality PA6 nylon, they combine mechanical strength and flexibility to ensure a reliable seal in both indoor and outdoor environments. Designed for ease of installation, these glands feature an extended metric thread for a secure fit across a wide range of cable sizes. The integrated strain relief prevents cable damage, while the EPDM washer and locknut provide a watertight IP68 seal, protecting against dust, moisture and contaminants.
Colour Black (BK)
Local order number NG25
Material Polyamide 6 (PA6), Ethylene Propylene Diene Terpolymer rubber free of Nitrosamine (EPDM)
PART DESCRIPTION NG25-PA6/EPDM-BK
Package Content 20pcs.
Package Content packed in bag
Product Family NG Series
Product Group Nylon Cable Glands
Type NG25
Length (L) 45.5mm
Length (L2) 22.5mm
Length (L3) 11.3mm
Nut Size (NS) 33mm
Outside ⌀ (OD) 25mm
Thickness (T) 1.6mm
Thread Length (TL) 15mm
Thread Size M25
Width (W) 33mm
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +100 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 9349519007935
