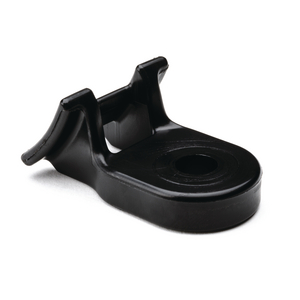

Cable tie mount for screw fixation, Wmax=12.7mm, ⌀12.7 mm, ⌀12.0 mm, 1/2" (M12) Screw, black, 500pcs.
Art.-No. 151-07500 | HDM501-PA66HIRHSUV-BK

Copied
  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 13.5 mm width
  • Easy maintenance of bundle by simply changing the cable tie
Show more

Request your individual offer now

Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
Befestigungsart Screw Mounting and Rivet
Besonderheiten vibration absorbing
Bestell Typ HDM501BK
Farbe Black (BK)
Inhalt 500ST
Inhalt per pack
Kurzbeschreibung Medium torque mount 46x24 mm, high impact, heat and UV stabilised, black
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Produktbezeichnung HDM501-PA66HIRHSUV-BK
Produktfamilie Medium Torque Mounts
Produktgruppe Harness clip for heavy duty applications, for screws or threaded bolts
Typ HDM501
Typ Befestigungsschraube 1/2" (M12) Screw
Binderbreite max. (G) 12.7mm
Binderbreite max. (G) (imperial) 0.50"
Bolzen ⌀ 12.0 mm
Bolzen ⌀ (imperial) 0.47"

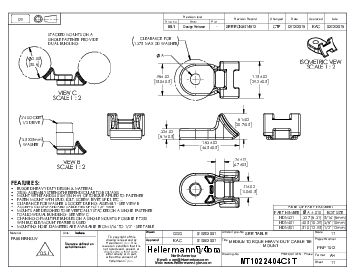

Breite (W) 24.0mm
Höhe (H) 20.7mm
Länge (L) 46.0mm
Teil - Nettogewicht 0.006654kg
für ⌀ Befestigungsloch (FH) 12.7 mm
Betriebstemperatur -40 °C to +105 °C
Brandschutzeigenschaften UL 94 HB
CE konform No
ELV konform YES
Gefahrgut No
Max. Anzugsdrehmoment (kgf-cm) 553kgf-cm
Max. Anzugsdrehmoment (lbf-In) 40lbf-ft
ROHS konform Yes
UL Listung No
UL Listung (gültig in USA) No
UL anerkannt No
UL anerkannt (gültig in USA) No
UV-beständig Yes
Zertifiziert nach CSA No
Zulassungen/Normen
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
EAN / GTIN 4031026266374
Ursprungsland US
Verpackung 1 - Beschaffenheit box
Verpackung 1 - Breite, gefüllt (m) 0.259m
Verpackung 1 - Gewicht (kg) 3.41kg
Verpackung 1 - Höhe (m) 0.17m
Verpackung 1 - Länge (m) 0.429m
Verpackung 1 - Menge 500
Verpackung 1 - Volumen (m³) 0.01888887
Verpackung 3 - Beschaffenheit bag
Verpackung 3 - Breite (m) 0.62865m
Verpackung 3 - Gewicht (kg) 3.84kg
Verpackung 3 - Höhe (m) 0.000076m
Verpackung 3 - Länge (m) 0.62865m
Verpackung 3 - Menge 500
Verpackung 3 - Volumen (m³) 0
Verpackung 4 - Beschaffenheit pallet
Verpackung 4 - Breite (m) 0.8m
Verpackung 4 - Gewicht (kg) 171.003kg
Verpackung 4 - Höhe (m) 1.25m
Verpackung 4 - Länge (m) 1.2m
Verpackung 4 - Menge 21000
Verpackung 4 - Volumen (m³) 1.2
ETIM 7.0 EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Code 39121717
