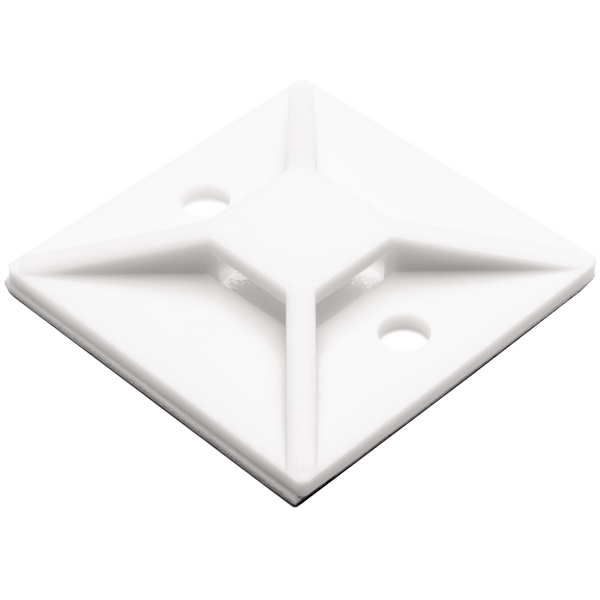

Self Adhesive, Screw Fixing Cable Tie Mounts : MB5A

Screw Fixing Cable Tie Mount self adhesive 38x38 natural, Article number: 151-28529

Features

  • Screwable or self-adhesive versions
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation

Certifications & Approvals

Application

Where speed, simplicity and a firm fixing base are required these self adhesive clips are ideal. Particularly suitable for use in control cabinets, telecoms equipment or domestic appliances where the use of holes, screws, or nuts and bolts is impractical or undesirable.

MB-Series square design, self adhesive, screwable is suitable for following markets and industries

Colour White (WH)
Fixation Method Screw Mounting and Adhesive
Mounting Screw Type Adhesive
Pack Content 100pcs.
Package Quantity per bag
PART DESCRIPTION MB5A-PA66-WH
Product Family MB-Series square design, self adhesive, screwable
Product Group Self Adhesive, Screw Fixing Cable Tie Mounts
Fixing Hole Centres (F) 25.3mm
Fixing Hole Centres (F) 1.0"
for Hole ∅ (FH) 4.8 mm
Height (H) 7.10mm
Length (L) 37.7mm
Max. Tie Width (G) 8.9mm
Strap Width max. (G) 0.35"
Thickness of Adhesive (TA) nom. 0.8mm
Thickness of Adhesive (TA) nom. 0.031"
Width (W) 37.7mm
Adhesive Synthetic rubber with base of polyethylene foam
Adhesive Operating Temperature -20 °C to +50 °C
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2 (excluding adhesive)
Hazardous good No
Material Polyamide 6.6 (PA66)
Material PA66
Operating Temperature - °C -40 °C to +85 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
EAN / GTIN 4031026122779
Packaging 1 - Height (m) 0.05m
Packaging 1 - Length (m) 0.29m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00258
Packaging 1 - Weight (kg) 0.344kg
Packaging 1 - Width (m) 0.178m
Packaging 3 - Height (m) 0.215m
Packaging 3 - Length (m) 0.512m
Packaging 3 - Qty 2000
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0347
Packaging 3 - Weight (kg) 7.492kg
Packaging 3 - Width (m) 0.315m
Packaging 4 - Height (m) 1.22m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 40000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.171
Packaging 4 - Weight (kg) 170.84kg
Packaging 4 - Width (m) 0.8m
Weight 0.344kg
UNSPSC Key 39121717
