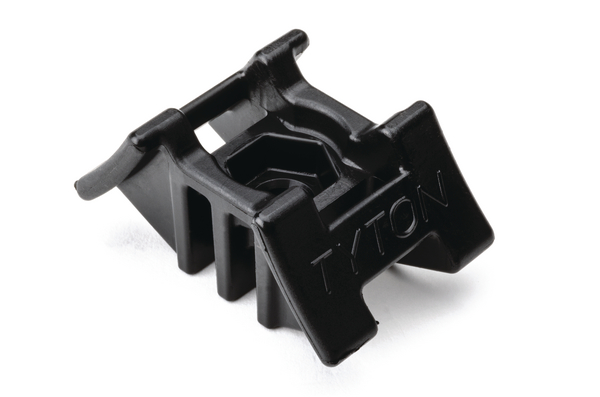

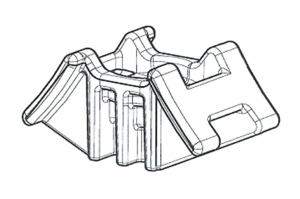

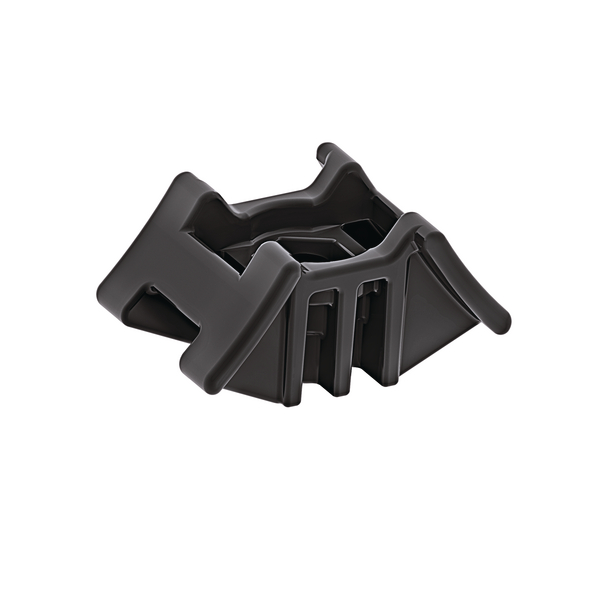

Cable tie mount for screw fixation, Wmax=13.5mm, ∅6.0 mm/6.35 mm (hexagonal), ∅6.35 mm, #1/4" (M6) Screw, black, 500pcs.
Art.-No. 151-29403 | S2HM25-PA66HIRHSUV-BK Details

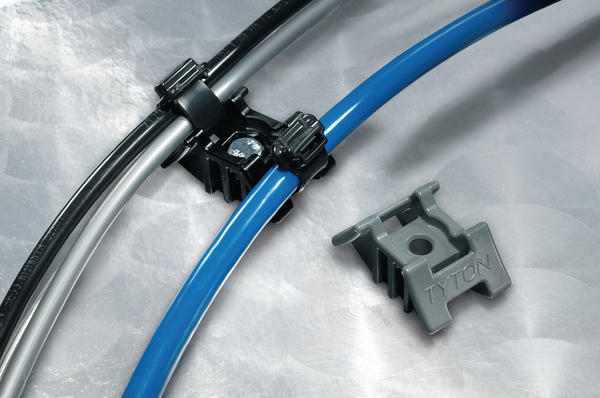

  • For parallel routing of bundles
  • Secure alignment to the bundle due to H-design
  • Cable tie head can be moved after bundling
  • For cable ties up to 12.7 mm wide
  • Easy maintenance of bundle by simply changing the cable tie
Show more

Request your individual offer now

Application With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
For Ties T50 - T250
Key product features vibration absorbing, for multiple routing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type #1/4" (M6) Screw
PART DESCRIPTION S2HM25-PA66HIRHSUV-BK
Pack Content 500pcs.
Package Content packed in bag
Product Family S-Series

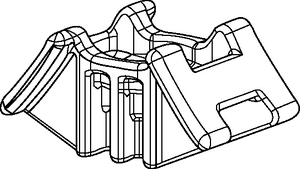

Product Group Two way saddle mount for heavy duty applications, for parallel separation
Type S2HM25
Bundle Diameter max (metric) 89.0mm

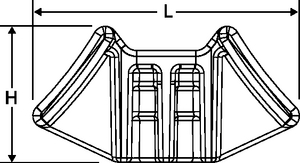

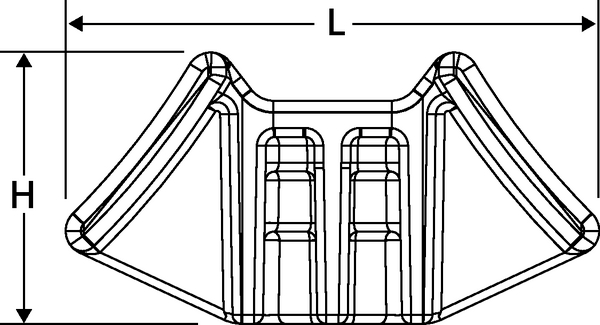

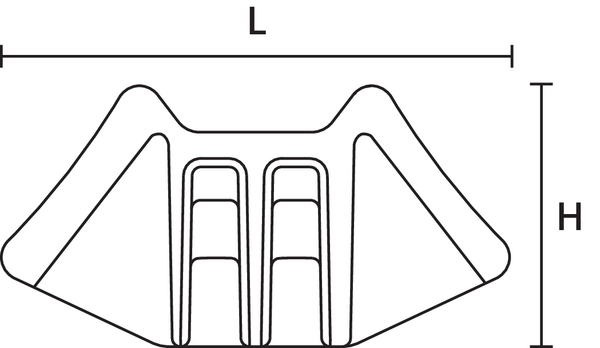

Height (H) 23.0mm
Height (H2) 15.0mm
Length (L) 45.0mm
Max. Tie Width (G) 13.5mm
Strap Width max. (G) 0.5"
Stud ∅ 0.25"
Stud ∅ 6.35 mm

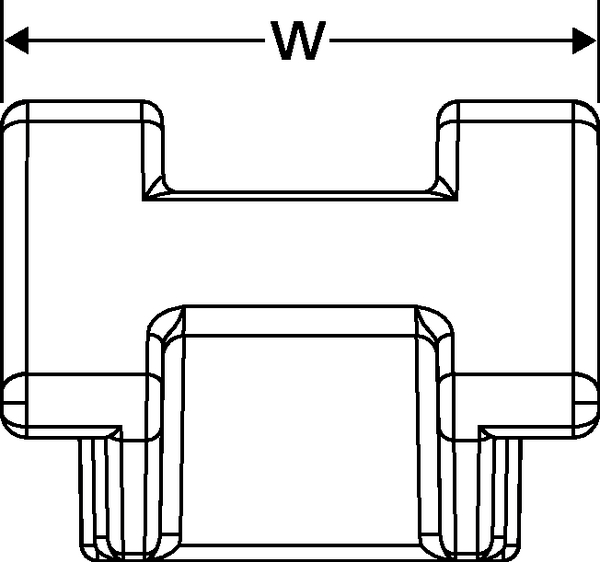

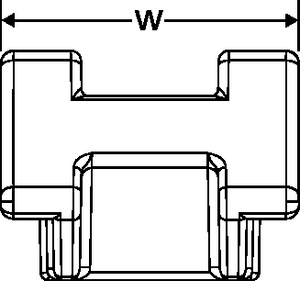

Width (W) 30.0mm

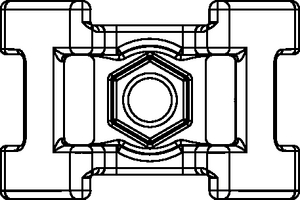

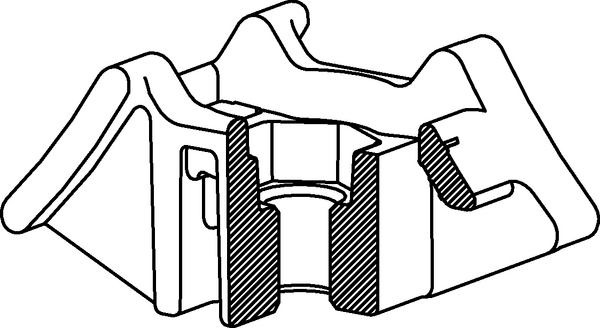

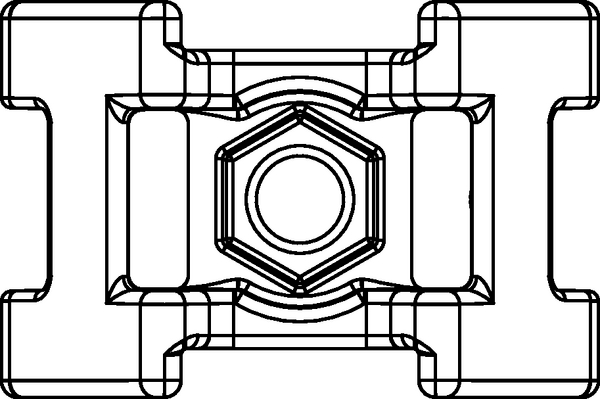

for Hole ∅ (FH) 6.0 mm, 6.35 mm (hexagonal)
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026312477
Packaging 1 - Height (m) 0.048m
Packaging 1 - Length (m) 0.22m
Packaging 1 - Qty 500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0018
Packaging 1 - Weight (kg) 4.940001kg
Packaging 1 - Width (m) 0.17m
Packaging 3 - Height (m) 0.142875m
Packaging 3 - Length (m) 0.5159375m
Packaging 3 - Qty 500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0229
Packaging 3 - Weight (kg) 4.96kg
Packaging 3 - Width (m) 0.31115m
Packaging 4 - Height (m) 1.159m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 14000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.113
Packaging 4 - Weight (kg) 173.6kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
