30/10/2025

Cable tie mount for screw fixation, Wmax=12.7mm, ⌀8.0 mm, ⌀8.0 mm, 5/16" (M8) Screw, grey, 500pcs.
Art.-No. 151-29600 | SAM83-PA66HIRHS-GY |

Copied
Positions bundles off cross members and frame rails to prevent abrasion and chafing.
Axial oval mounts stand off bundles from frame rails and cross members to prevent them from rubbing and chafing.
Positions bundles off cross members and frame rails to prevent abrasion and chafing.
Positions bundles off cross members and frame rails to prevent abrasion and chafing.
SAM83
SAM83

    • Guides bundles securely above sharp edges
    • For threaded bolts or screws
    • Can be used in combination with heavy duty cable ties
    • For cable ties up to 12.7 mm width
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application With its heavy duty fixing ability this product offers excellent performance for the truck, ship and construction vehicle industries.
    Colour Grey (GY)
    Fixation Method Screw Mounting and Rivet
    For Ties T50 - T250
    Key product features vibration absorbing
    Local order number SAM83GY
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type 5/16" (M8) Screw
    PART DESCRIPTION SAM83-PA66HIRHS-GY
    Package Content 500pcs.
    Package Content packed in pack
    Product Family SAM83 with a socket counter bore
    Product Group Harness clip for heavy duty applications, for screws or threaded bolts for edges
    Type SAM83
    UV-Stabilised No
    Fixing Hole Shape Oval

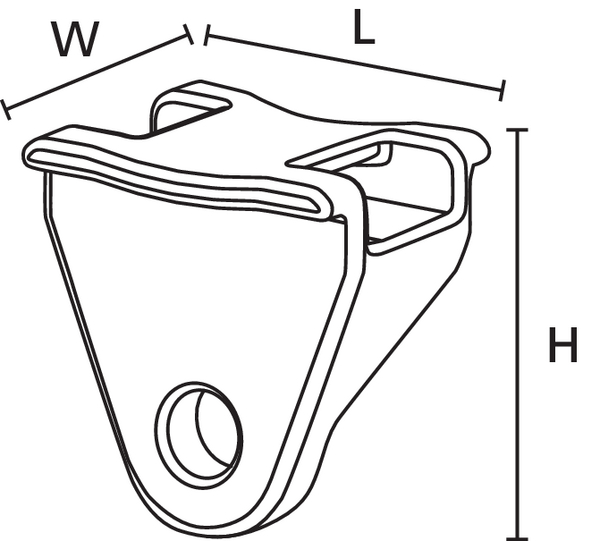

    Height (H) 35.0mm
    Length (L) 34.0mm
    Strap Width max. (G) 0.5"
    Strap Width max. (G) 12.7mm
    Stud ⌀ 0.3125"
    Stud ⌀ 8.0 mm
    Width (W) 26.0mm
    for Hole ⌀ (FH) 8.0 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026312491
    Packaging 1 - Height (m) 0.07m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01575m³
    Packaging 1 - Weight (kg) 3.874kg
    Packaging 1 - Width (m) 0.36m
    Packaging 3 - Height (m) 0.136525m
    Packaging 3 - Length (m) 0.439737499999999m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0156m³
    Packaging 3 - Width (m) 0.260349999999999m
    UNSPSC Key 39121717
