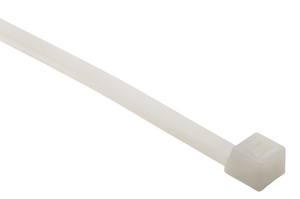

Cable tie inside serrated, 530.0x8.9mm, Ø8.0-150.0mm, natural, 25pcs.
Art.-No. 111-15619 | T150M-PA66-NA Details

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Show more
Package size

Request your individual offer now

e-Learning
Application T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.
Application Tool MK9P, MK9P w/ Upper air, EVO9SP, EVO9HT
Colour Natural (NA)
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Content 25pcs.
Package Content packed in bag
PART DESCRIPTION T150M-PA66-NA
Product Family T-Series in PA66 natural
Product Group Cable ties polyamide 6.6 standard
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Variant Inside Serrated
Bundle Diameter max (metric) 150.0mm
Bundle ∅ min. 8.0mm
Cable Tie Head Height (metric) 9.5mm
Length (L) 530.0mm
Min.Tensile Strength 780N
Thickness (T) 1.9mm
Width (W) 8.9mm
CE Certification Yes
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 V2
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +85 °C
Plenum Rating AH-2
Specifications
Specifications UL 62275
UL Listed (US and Canada) Yes
UL OCD link Link Link Link Link
UL Recognized (US and Canada) Yes
UL-File Number E64139
UV-Stabilised (Yes/No) No
GTIN-13 / EAN 4031026106724
Packaging 1 - Height (m) 0.032m
Packaging 1 - Length (m) 0.574m
Packaging 1 - Qty 25
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00231
Packaging 1 - Weight (kg) 0.275001kg
Packaging 1 - Width (m) 0.126m
Packaging 3 - Height (m) 0.22542499999999998m
Packaging 3 - Length (m) 0.84455m
Packaging 3 - Qty 1000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0447
Packaging 3 - Weight (kg) 12.73kg
Packaging 3 - Width (m) 0.23495m
Packaging 4 - Height (m) 1.245m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 15000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.195
Packaging 4 - Weight (kg) 196.2kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121703
