Cable clip for edge, T=1.0 - 3.0mm, Dmin=15mm, Dmax=22mm
Art.-No. 151-00161 | EC27-PA66HIRHS-BK |

Copied
EdgeClip cable and tube clips are suitable for the low-vibration routing of cables and tubes with larger bundle diameters.

    • Clips to be pushed onto an edge
    • Low-vibration routing of bigger bundle diameters
    • To be closed single handed, a snap can be felt
    • Bundels can be released at any time
    • Covers are releasable for maintenance or post-installations
    • EC27 and HCEC3.0SP-C: fixing element enables use of smaller bundle diameters
    • EC41: for parallel guidance of two bundles
    • HCEC3.0TPS: specially rounded surface to minimise risk of injury
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote

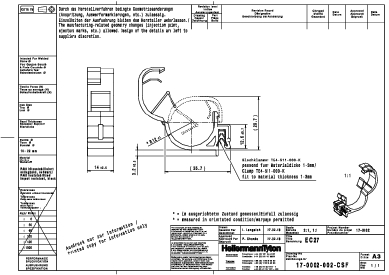

    Downloads CAD-Download
    Application EdgeClips are used in the automotive industry and electrical industries and when it is impossible to drill holes or no other fixing points are available.
    Befestigungsart Edge Clip
    Besonderheiten lockable, releasable, removable
    Bestell Typ EC27-BK
    Farbe Black (BK)
    Inhalt 500ST
    Inhalt per pack
    Kurzbeschreibung Bundling Clip for Edges 1 - 3 mm, high impact modified, heat stabilised, black
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Produktbezeichnung EC27-PA66HIRHS-BK
    Produktgruppe Fixing Elements for Tubes and Harnesses, for Edges
    Typ EC27
    Blechstärke 1.0 - 3.0mm
    Bündel ⌀ 15-22mm
    Bündel ⌀ max. 22mm
    Bündel ⌀ min. 15mm
    Passt für ⌀ 15.0 - 22.0 mm
    Teil - Nettogewicht 0.004399kg
    für Blechstärke min - max 1 - 3 mm
    Betriebstemperatur -40 °C to +105 °C
    Brandschutzeigenschaften UL 94 HB
    CE konform No
    ELV konform YES
    Gefahrgut No
    ROHS konform Yes
    UV-beständig No
    Zertifiziert nach CSA No
    Zulassungen/Normen
    EAN / GTIN 4031026254340
    Ursprungsland FR
    Verpackung 1 - Beschaffenheit pack
    Verpackung 3 - Beschaffenheit box
    Verpackung 3 - Breite (m) 0.3m
    Verpackung 3 - Gewicht (kg) 2.5685kg
    Verpackung 3 - Höhe (m) 0.15m
    Verpackung 3 - Länge (m) 0.4m
    Verpackung 3 - Menge 500
    Verpackung 3 - Volumen (m³) 0.018m³
    Verpackung 4 - Beschaffenheit pallet
    Verpackung 4 - Breite (m) 0.8m
    Verpackung 4 - Gewicht (kg) 164.836kg
    Verpackung 4 - Höhe (m) 1.194m
    Verpackung 4 - Länge (m) 1.2m
    Verpackung 4 - Menge 28000
    Verpackung 4 - Volumen (m³) 1.146m³
    ETIM 7.0 EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Code 39121702
