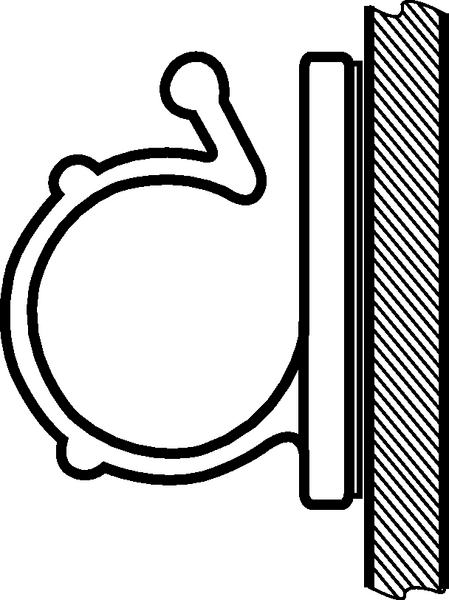

Cable clip for adhesive use/with pipe/tube holder, Dmax=6.0mm
Art.-No. 151-13019 | RA6-PA66-NA

Copied
  • One-piece self adhesive mount for quick and easy installation
  • Can be used without cable ties offering process optimization
  • Designed to hold wires, cables or hoses
  • Different sizes for various bundle diameters available
  • Two types of adhesive can be offered
Show more

Request your individual offer now

Application These mounts are ideal for use in applications which are difficult to access or for areas where self adhesive is the only possible fixing method and fixing holes would be unacceptable. The self adhesive mounts can be used without cable ties. Offering process optimization in industries like automotive, bus and truck, construction vehicles or industrial building.
Ausführung Closed
Befestigungsart adhesive
Bestell Typ RA6NA
Farbe Natural (NA)
Inhalt 100ST
Inhalt per pcs.
Kurzbeschreibung Self Adhesive Clip with round design 19x19 mm natural
Material Polyamide 6.6 (PA66)
Produktbezeichnung RA6-PA66-NA
Produktfamilie RA-Series
Produktgruppe Mounts with cable clip, self-adhesive
Typ RA6
Breite (W) 19.0mm
Breite (W2) 5.0mm
Bündel ⌀ 6.0mm
Bündel ⌀ max. 6.0mm
Höhe (H) 9.0mm
Höhe (H2) 2mm
Länge (L) 19.0mm
Nennmaß ⌀ 6mm
Teil - Nettogewicht 0.001108kg
Betriebstemperatur -40 °C to +60 °C
Betriebstemperatur Kleber -40 °C to +60 °C
Brandschutzeigenschaften UL 94 V2 (excluding adhesive)
ELV konform YES
Gefahrgut No
Klebstoff Synthetic rubber with base of polyethylene foam
Nato Nummer 5340-12-314-1781
ROHS konform Yes
UV-beständig No
Zulassungen/Normen
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability.
EAN / GTIN 5022660314605
Ursprungsland GB
Verpackung 1 - Beschaffenheit bag
Verpackung 1 - Breite, gefüllt (m) 0.155m
Verpackung 1 - Gewicht (kg) 0.1158kg
Verpackung 1 - Höhe (m) 0.025m
Verpackung 1 - Länge (m) 0.23m
Verpackung 1 - Menge 100
Verpackung 1 - Volumen (m³) 0.00089125
Verpackung 3 - Beschaffenheit box
Verpackung 3 - Breite (m) 0.38m
Verpackung 3 - Gewicht (kg) 10.22kg
Verpackung 3 - Höhe (m) 0.345m
Verpackung 3 - Länge (m) 0.38m
Verpackung 3 - Menge 8000
Verpackung 3 - Volumen (m³) 0.0498
Verpackung 4 - Beschaffenheit pallet
Verpackung 4 - Breite (m) 0.8m
Verpackung 4 - Gewicht (kg) 204.96kg
Verpackung 4 - Höhe (m) 1.258m
Verpackung 4 - Länge (m) 1.2m
Verpackung 4 - Menge 144000
Verpackung 4 - Volumen (m³) 1.208
ETIM 7.0 EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Code 31162305
