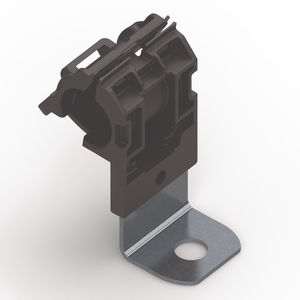

P-clamp fixing clamp, Dmin=12.7mm, Dmax=19.5mm, black, 280pcs.
Art.-No. 151-03620 | RCBHANGERFS-PA66HIRHSUV/ZN-BK Details

  • Ratchet P-Clamp B-Series for bundle diameters from 13.2 mm to 19.5 mm
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour Black (BK)
Fixation Method Mounting Hanger
Key product features vibration absorbing, removable, releasable, for multiple routing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Zinc plated (ZN)
PART DESCRIPTION RCBHANGERFS-PA66HIRHSUV/ZN-BK
Pack Content 280pcs.
Package Content packed in box
Product Family For bundle diameters from 12.7 mm to 19.5 mm, B-Series
Product Group Ratchet P-Clamp
Type RCBHANGERFS
Variant Fixing clamp
Bundle Diameter max (metric) 19.5mm
Bundle ∅ min. 12.7mm
Length (L) 134.4mm
Length (L2) 50.0mm
Min.Tensile Strength 445N
Width (W) 34.9mm
CE Certification No
Flammability UL 94 HB
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
UV-Stabilised Yes
GTIN-13 / EAN 4031026682167
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Width (m) 0.396875m
UNSPSC Key 39121702
