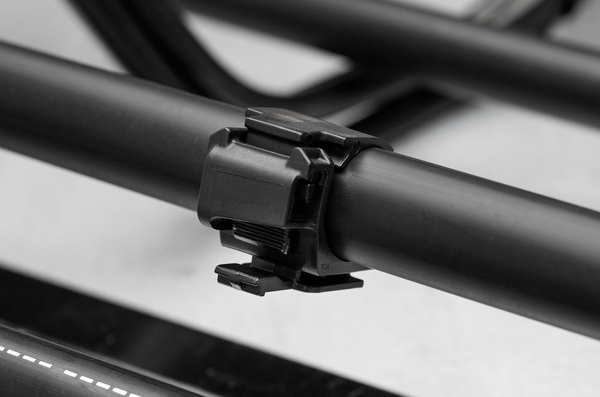

Ratchet O-Clamp
Art.-No. 151-04350 | ROC18.5-22.5CLIP17-PA66HIRHSUV-BK |

Copied
Connector Clip Series, ROC18.5-22.5CLIP17.
Modular connector clip design eliminates the need for investment in expensive tools.

    • Compact size for mounting in tight spaces
    • Modular connector clip design eliminates the need for investment in expensive tools for TPE products or the upsetting of tubes and pipes
    • Fine-pitch ratchet provides controlled grip for a range of pipe sizes with a single part
    • Fully enclosed clamp prevents slipping, crushing, and fallout under vacuum
    • Release latch opens with a simple twist of a screwdriver
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Ratchet O-Clamp is designed for tight spaces, maintaining a low profile while providing an adjustable closure for a range of bundle sizes. HellermannTyton’s connector clips offer a unified solution for mounting connectors to various surfaces across a wide range of applications. Clips can be paired with brackets to support custom routing requirements.
    Colour Black (BK)
    Fixation Method Connector Clip
    Local order number ROCCLIP
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 445N
    PART DESCRIPTION ROC18.5-22.5CLIP17-PA66HIRHSUV-BK
    Package Content 1000pcs.
    Package Content packed in carton
    Product Family with Connector Clip
    Product Group Ratchet O-Clamp
    Type ROC18.5-22.5CLIP17
    Type of connection USCAR17
    UV-Stabilised Yes
    Bundle ⌀ max. 22.5mm
    Bundle ⌀ min. 18.5mm
    Height (H) 48.1mm
    Length (L) 58.1mm
    Width (W) 20.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    GTIN-13 / EAN 4031026752525
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    UNSPSC Key 39121702
