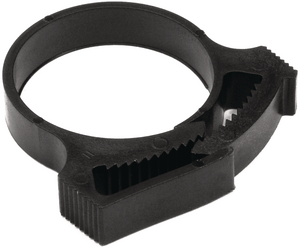

Plastic hose clamp, ⌀14.5-16.6mm, black, 100pcs.
Art.-No. 192-10100 | SNP10-PA66HIRHSGF15-BK |

Copied
Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads CAD-Download
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour Black (BK)
    Fixation Method Plug-in mounting
    Material Polyamide 6.6, impact modified, heat stabilized, glass-fibre reinforced (PA66HIRHSGF15)
    PART DESCRIPTION SNP10-PA66HIRHSGF15-BK
    Pack Content 100pcs.
    Package Content packed in pack
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP10
    Variant Closed
    ⌀ D max. 16.61mm
    ⌀ D max. 0.654"
    ⌀ D min. 14.5mm
    ⌀ D min. 0.571"
    Bundle ⌀ max. 16.6mm
    Bundle ⌀ min. 14.5mm
    Nominal ⌀ 0.63"
    Nominal ⌀ 16mm
    Wall (WT) .069"
    Wall (WT) 1.8mm
    Width (W) max. 1.059"
    Width (W) max. 26.9mm
    Width (W) min. 17.6mm
    Width (W) min. 0.693"
    Width (W2) 0.232"
    Width (W2) 5.9mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    GTIN-13 / EAN 4031026128535
    Packaging 1 - Height (m) 0.045m
    Packaging 1 - Length (m) 0.23m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.001035m³
    Packaging 1 - Weight (kg) 0.200001kg
    Packaging 1 - Width (m) 0.1m
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Width (m) 0.39688m
    UNSPSC Key 31162906
