Hexagonal aluminium die for HYCP400, conductor size range 50mm - 70mm
Art.-No. 924-00337 | ALDIE50-70-MET-ML |

Copied
Aluminium die ALDIE series (c-type) for conductor sizes 6 - 300 mm².

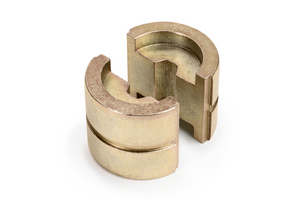

Copper and aluminium die, side view 2
Copper and aluminium die, side view
Copper and aluminium die, front view

    • Available in sizes ranging from 6mm² to 300mm²
    • C-type design
    • Dies are sold separately
    • Cross-flat size markings are embossed on the lug and link after crimping
    • Die radius: 60°
    Stock item
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The hexagonal head crimp dies are specifically designed for use with the 12 tonne hydraulic crimper (HYCP400). These dies are engineered to meet Australian and New Zealand standards for the HellermannTyton aluminium and bi-metal range. The dies are inserted into the crimper by sliding them into the designated slots on the head and ram.
    Colour Metal (ML)
    Description Aluminium die, conductor size 50 - 70mm² - A/F 13.2mm
    Local order number ALDIE50-70
    Material Metal (MET)
    PART DESCRIPTION ALDIE50-70-MET-ML
    Package Content 1pc.
    Package Content packed in box
    Product Family Hydraulic Die for Aluminium Lugs
    Product Group Crimp Tools
    Type ALDIE50-70
    A/F Hex (A/F2) 13.2mm
    Conductor Size (mm²) 50, 70
    Length (L) 15.2mm
    Width (W) 22mm
    Width (W2) 15.24mm
    Halogen-free No
    ROHS compliant No
    GTIN-13 / EAN 9349519011031
