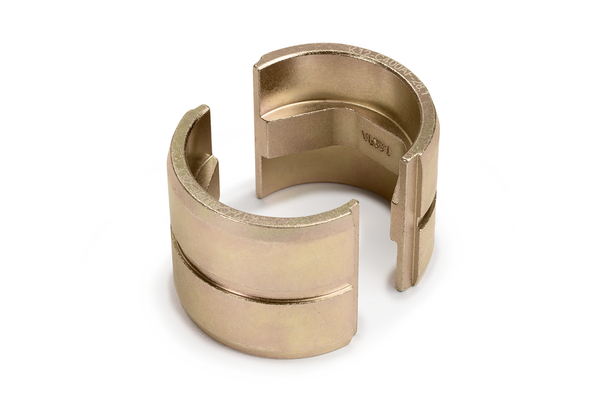

Hexagonal copper die for HYCP400, conductor size 95mm
Art.-No. 924-00329
| DIECU95-MET-ML
|
Copied
- Available in sizes ranging from 16mm² to 400mm²
- C-type design
- Dies are sold separately
- Cross-flat size markings are embossed on the lug and link after crimping
- Die radius: 60°
Stock item
Request your individual offer now
Request quote
More products in this product group:
| Application | The hexagonal head crimp dies are specifically designed for use with the 12 tonne hydraulic crimper (HYCP400). These dies are engineered to meet Australian and New Zealand standards for the HellermannTyton range of copper lugs and links. The dies are inserted into the crimper by sliding them into the designated slots on the head and ram. |
| Colour | Metal (ML) |

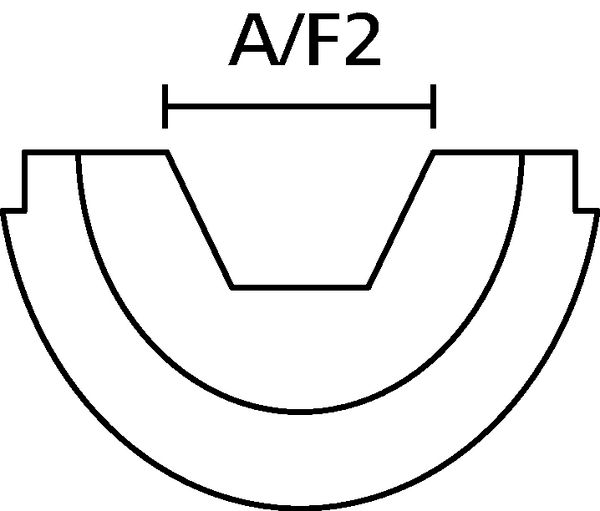

| Description | Copper die, conductor size 95mm² - A/F 14.2mm |
| Local order number | DIECU95 |
| Material | Metal (MET) |
| PART DESCRIPTION | DIECU95-MET-ML |
| Package Content | 1pc. |
| Package Content packed in | box |
| Product Family | Hydraulic Die for Copper Lugs |
| Product Group | Crimp Tools |
| Type | DIECU95 |
