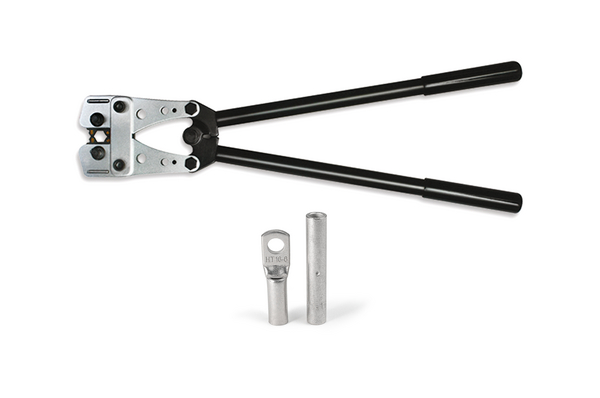

Heavy duty crimp tool for cable lugs up to 6 - 120mm, manual, 4kg, black
Art.-No. 924-00322 | HD06120AU-MET-BK

Copied
  • Internal rotary dies are easily adjustable to accommodate various lug and link cable size dimensions
  • Rotary dies are included
  • Suitable for crimping a broad range of lugs and links
  • Extended handles offer improved leverage for efficient crimping

Request your individual offer now

Application The HD06120AU hexagonal jaw crimper is designed to crimp copper lugs and sleeves ranging from 6mm² to 120mm², minimising the tools required for completing the job. This mechanical crimper features rotary dies, allowing for easy selection of various lug and link sizes. The dimensions of the rotary hex dies are designed to align with Australian and New Zealand specification sizes for copper lugs and links.
Bestell Typ HD06120AU
Bezeichnung HD06120AU - Hex Crimper
Farbe Black (BK)
Inhalt 1ST
Inhalt per box
Kurzbeschreibung Heavy duty crimp tool for cable lugs up to 6 - 120mm, manual, 4kg, black
Material Metal (MET)
Produktbezeichnung HD06120AU-MET-BK
Produktfamilie HD06120AU
Produktgruppe Crimp Tools
Typ HD06120AU
Leiterquerschnitt (mm²) von bis 6 - 120mm²
Länge (L) 650.0mm
