Heavy duty crimp tool for cable lugs up to 16 - 630mm, manual, 9kg, red/black
Art.-No. 924-00947 | HP700A-MET-BK/RD

Tool used in combination with HP700A hand pump, HYCP630HE crimp head and CP630 dies for copper lugs and links range
Tool used in combination with HP700A hand pump, HYCP630HE crimp head, APD630HE die adaptor and ALDIE dies for aluminium and bi-metal range
Dual speed pump piston for rapid advance
Two stage pumping action
External adjustable pressure setting up to 700 bar
Internal oil bladder type oil reservoir allows operation in any position
Complete with a 2 meter hose

Request your individual offer now

Request quote

More products in this product group:

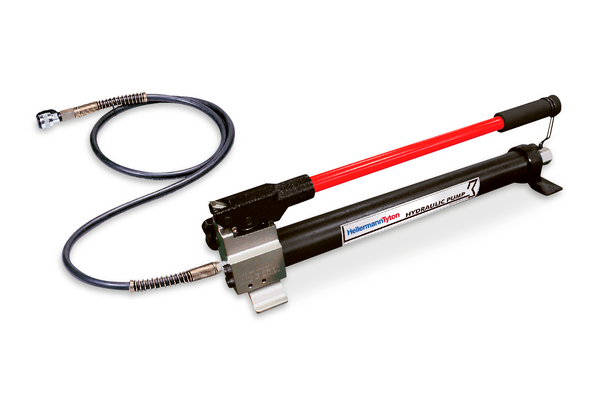

Application	The HP700A is a manually operated hydraulic hand pump designed to pair with our HYCP630HE hydraulic crimp head for terminating copper and aluminium lugs up to 630 mm². The pump delivers up to 700 bar of pressure and supports crimping heads rated up to 25 tonnes. Its 2-metre hose provides flexibility for use in tight or restricted spaces, making it ideal for fieldwork and installations where access is limited. The pump features an internal pressure release valve, which automatically releases once the desired crimp pressure has been reached. The hose is equipped with a Pioneer 3000 standard coupling, offering compatibility with most universal hydraulic crimp heads.
Colour	Black (BK), Red (RD)
Description	Hydraulic hand pump with 2M hose
Local order number	HP700A
Material	Metal (MET)
PART DESCRIPTION	HP700A-MET-BK/RD
Package Content	1pc.
Package Content packed in	box
Product Family	HP700A
Product Group	Crimp Tools
Type	HP700A
