Bootlace ferrule crimp tool up to 0.5 - 16mm, manual, 0.600kg, red/black
Art.-No. 924-00319 | HYAC10-MET/PL-BK/RD |

Copied

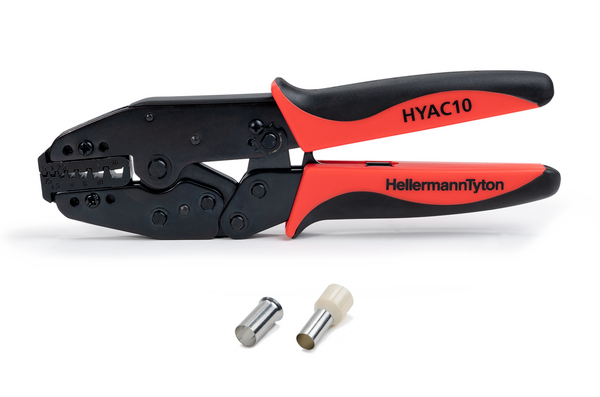

HYAC10 Bootlace ferrule crimper.

    • Designed for crimping a diverse range of bootlace pin terminals
    • Features tension adjustment for a secure grip on various cable sizes
    • Effectively crimps to establish a reliable connection between the terminal and the cable
    • Adjustable to accommodate a wide range of cable dimensions
    • Ergonomically designed handle the gripping force
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The HYAC10 bootlace ferrule crimping tool is engineered to crimp bootlace pins for terminals ranging from 0.5mm² to 16mm². This ratchet-style crimper provides precise crimping across ten different terminal sizes. It is equipped with a tension adjustment feature and a release mechanism to address any incorrect crimp operations.
    Colour Red (RD), Black (BK)
    Description Bootlace Ferrule Crimper
    Local order number HYAC10
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION HYAC10-MET/PL-BK/RD
    Package Content 1pc.
    Package Content packed in box
    Product Family HYAC10
    Product Group Bootlace Ferrule Crimp Tools
    Type HYAC10
    Conductor Size Range mm² 0.5 - 16mm²
    Length (L) 228mm
    Halogen-free No
    ROHS compliant No
    GTIN-13 / EAN 9349519008901
