Bootlace ferrule crimp tool up to 6 - 16mm, manual, 0.404 kg, red/black
Art.-No. 924-00318 | HYAC6-MET/PL-BK/RD |

Copied

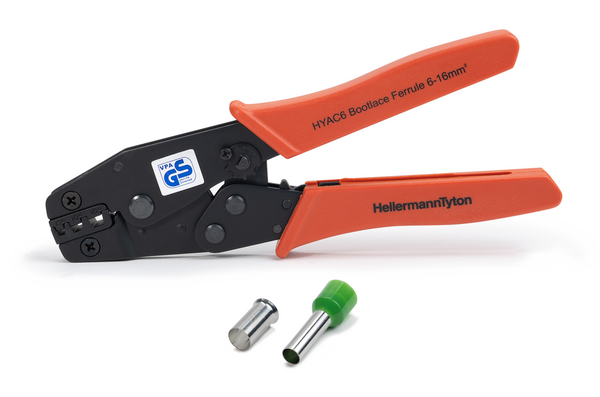

HYAC6 Bootlace ferrule crimper.

    • Designed for crimping a diverse range of bootlace pin terminals
    • Features tension adjustment for a secure grip on various cable sizes
    • Effectively crimps to establish a reliable connection between the terminal and the cable
    • Adjustable to accommodate a wide range of cable dimensions
    • Ergonomically designed handle the gripping force
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The HYAC6 bootlace ferrule crimping tool is engineered to crimp all bootlace terminals ranging from 6mm² to 16mm² minimusing the tools required for completing the job. This ratchet-style crimper provides precise crimping for insulated and uninsulated closed end connectors and ferrule terminals. Additionally, it includes a tension adjustment and a release mechanism to correct any incorrect crimp operations.
    Colour Red (RD), Black (BK)
    Description Bootlace Ferrule Crimper
    Local order number HYAC6
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION HYAC6-MET/PL-BK/RD
    Package Content 1pc.
    Package Content packed in box
    Product Family HYAC6
    Product Group Bootlace Ferrule Crimp Tools
    Type HYAC6
    Conductor Size Range mm² 6 - 16mm²
    Length (L) 210mm
    Width (W) 75mm
    Halogen-free No
    ROHS compliant No
    GTIN-13 / EAN 9349519008895
