Heavy duty crimp tool for cable lugs up to 16 - 400mm, manual, 6.4kg, yellow/black
Art.-No. 924-00323 | HYCP400-MET-BK/YE |

Copied

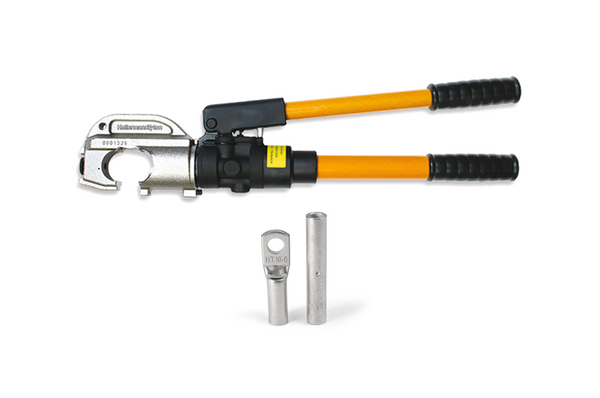

HYCP400 Hand Hydraulic Crimper.

    • Maximum force at die face: 12 tonnes (700 bar)
    • Automatic high/low pressure conversion
    • Adjustable operating modes: rapid and slow
    • Equipped with a pressure relief valve for overload protection
    • Head rotates 180 degrees for enhanced flexibility
    • Dies are sold separately
    • Includes heavy-duty carrying case
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The HYCP400 hexagonal hydraulic crimper is designed to crimp the HellermannTyton range for copper lugs and sleeves ranging from 16mm² to 300mm². This hydraulic crimper suits C-type dies with a 32mm opening, allowing for easy selection of various die sizes. The HYCP400 produces up to 12 tonnes of pressure to crimp aluminium and copper wires, accurately and efficiently.
    Colour Yellow (YE), Black (BK)
    Description HYCP400 - Hand Hydraulic Crimper
    Local order number HYCP400
    Material Metal (MET)
    PART DESCRIPTION HYCP400-MET-BK/YE
    Package Content 1pc.
    Package Content packed in box
    Product Family HYCP400
    Product Group Crimp Tools
    Type HYCP400
    Conductor Size Range mm² 16-400mm²
    Length (L) 630mm
    Halogen-free No
    ROHS compliant No
    GTIN-13 / EAN 9349519008079
