Terminal crimp tool for single grip, manual, 0.564kg, red/black
Art.-No. 924-00315 | HYYT1-MET/PL-BK/RD |

Copied

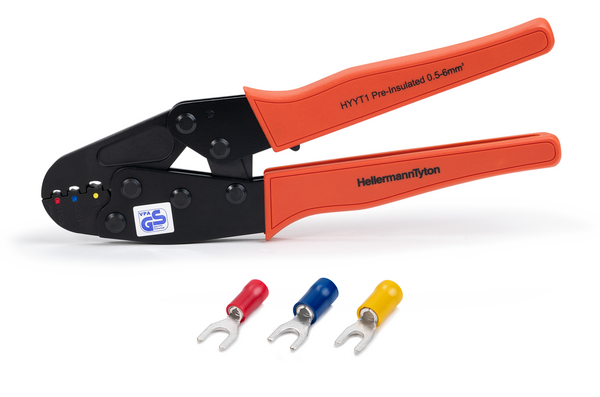

HTYY1 Pre-insulated single grip terminal crimper.

    • Designed for crimping pre-insulated terminals: Red (0.5mm²-1.5mm²), Blue (1.5mm²-2.5mm²), and Yellow (4mm²-6mm²)
    • Features clear color-coded markings for accurate terminal size allocation
    • Efficiently crimps to achieve superior electrical connection
    • Easily adjustable to accommodate a range of cable dimensions
    • Ergonomically designed handle for maximum confort
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The HYYT1 pre-insulated single grip crimping tool is designed to crimp terminals ranging from 0.5mm² to 6mm². This ratchet-style crimper is designed to achieve precise and reliable crimping for red, blue, and yellow pre-insulated terminals. The ratchet mechanism guarantees that each crimp has correct compression, reducing the risk of loose connections. Additionally, the tool is equipped with a release mechanism to address any incorrect crimp operations.
    Colour Red (RD), Black (BK)
    Description Pre-Insulated Single Grip Terminal Crimper
    Local order number HYYT1
    Material Metal (MET), Plastic (PL)
    PART DESCRIPTION HYYT1-MET/PL-BK/RD
    Package Content 1pc.
    Package Content packed in box
    Product Family HYYT1 - Pre-Insulated single grip crimper
    Product Group Terminal Crimp Tools
    Type HYYT1
    Conductor Size Range mm² 0.5 - 6mm²
    Length (L) 254mm
    Width (W) 66mm
    Halogen-free No
    ROHS compliant No
    GTIN-13 / EAN 9349519008864
