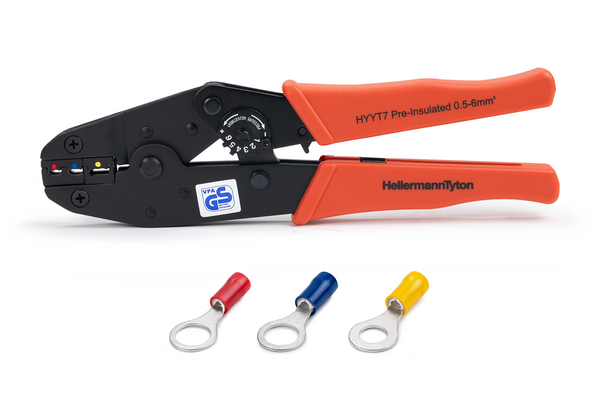

Terminal crimp tool for double grip, manual, 0.548kg, red/black
Art.-No. 924-00316
| HYYT7-MET/PL-BK/RD
|
Copied
- Colour coded wire markings: Red (0.5mm²-1.5mm²), Blue (1.5mm²-2.5mm²), and Yellow (4mm²-6mm²)
- Tension adjustment feature for a secure grip on a range of cable sizes
- Features clear color-coded markings for accurate terminal size allocation
- Efficiently crimps to achieve superior electrical connection
- Easily adjustable to accommodate a range of cable dimensions
- Ergonomically designed handle for maximum comfort
Request your individual offer now
Request quote
More products in this product group:
| Application | The HYYT7 pre-insulated double grip crimping tool is designed with three crimping capacities ranging from 0.5mm² to 6mm², ensuring precise and consistent crimping for red, blue, and yellow pre-insulated terminals. The built-in ratchet mechanism minimizes the risk of loose connections, while the tool's tension adjustment and release option ensures a uniform crimp every time. This double grip crimper performs two critical functions: it secures the electrical connection between the conductor and terminal, and it provides an insulation crimp that offers strain relief against vibration and tension. |
| Colour | Red (RD), Black (BK) |
| Description | Manual crimper for pre-insulated double-grip terminals, 0.5 - 6 mm² |
| Local order number | HYYT7 |
| Material | Metal (MET), Plastic (PL) |
| PART DESCRIPTION | HYYT7-MET/PL-BK/RD |
| Package Content | 1pc. |
| Package Content packed in | box |
| Product Family | HYYT7 - Pre-Insulated double grip crimper |
| Product Group | Terminal Crimp Tools |
| Type | HYYT7 |
