Copper Cable Lug
Art.-No. 924-00566 | CL2.5-4-CU-SR Details

  • For terminating copper conductors
  • Large range of sizes available
  • Allows for easy insertion of cable
  • Tolerance ± 2%
  • Aluminium Sleeve 99.6% pure
  • Copper Palm 99.9% pure
  • Oxygen content 30 p.p.m max
  • Ductile rating 28%
  • Final metal state fully annealed
  • Electroplating material tin 99.9% pure
  • Other metals lead + antimony
  • Thickness 5-10 microns
  • Aluminium resistivity: 2.6 micro-ohm cm (max)
  • Copper resistivity: 1.72 micro-ohm cm
  • Heat cycle certification available on request
Show more

Request your individual offer now

Application Copper cable lugs are used to terminate the ends of cables and welding cables. The HellermannTyton range of Copper Lugs and Links complies with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995 and is manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring the best electrical properties possible. A crimping tool is recommended for this application.
Colour Silver-matt (MTSR)
Description COPPER LUG 2.5MM² M4 STUD
Material Copper (CU)
PART DESCRIPTION CL2.5-4-CU-SR
Pack Content 100pcs.
Package Content packed in box
Product Family Copper Lugs
Product Group Copper Cable Lug

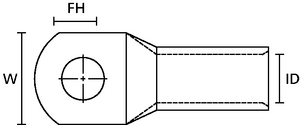

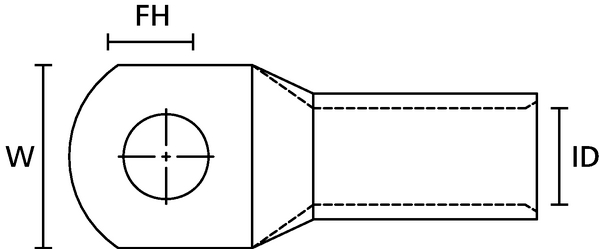

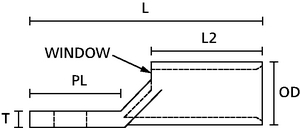

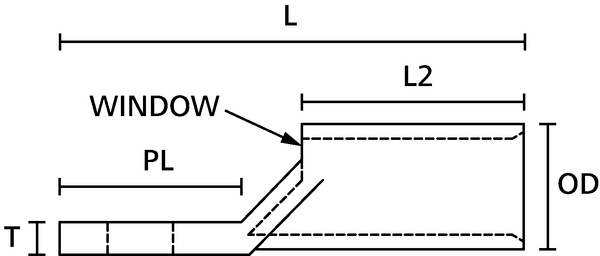

Type CL2.5-4
Inside Ø (ID) 2.5mm
Length (L) 19mm
Length (L2) 8mm
Main Cabel max 7 x 0.67mm²
Offset Length 9mm
Outside Ø (OD) 4.4mm
Thickness (T) 1mm
Width (W) 8mm
for Hole ∅ (FH) M4
Operating Temperature -55 °C to +155 °C
Specifications
Specifications AS/NZS4325 Part 1
Tensile Strength 110MPa
