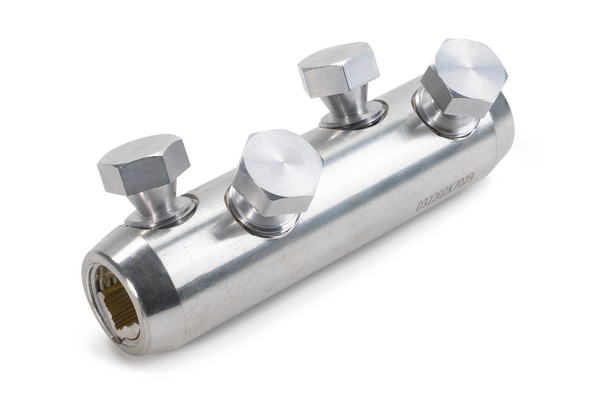

Mechanical Shear-Bolt Connector
Art.-No. 924-00860 | SOK95-240-AL-SR |

Copied
Shear off mechancial alloy link, SOK series.

    • Wide cross section application range
    • Three connectors cover the range from 25mm² to 400mm²
    • Suitable for Copper and Aluminum Conductors (excluding class 5 & 6 fine stranded cables)
    • Suitable for all conductor types and shapes
    • High clamping forces
    • Reduces inventory range and volume
    • Easy installation
    • No special tools required (Hydraulic pump/heads) reducing installation cost
    Add to watchlist

    Request your individual offer now

     Request quote
    Application These lugs have been developed for low and medium voltage cables suitable for outdoor applications. The range taking connector technology removes the need for specific sized lugs and sleeve connectors. It boosts a simple yet reliable execution method irrespective of the installer’s skill level.
    Colour Silver-matt (MTSR)
    Description SHEAR OFF MECHANICAL ALLOY CONNECTOR 95MM²-240MM²
    Local order number SOK95-240
    Material Aluminium alloy (AL)
    PART DESCRIPTION SOK95-240-AL-SR
    Pack Cont. 1pc.
    Package Content packed in pcs.
    Product Family SOK-Series
    Product Group Mechanical Shear-Bolt Connector
    Type SOK95-240
    Conductor Size Range mm² 95-240mm²
    Operating Temperature -20 °C to +140 °C
    GTIN-13 / EAN 9349519011581
