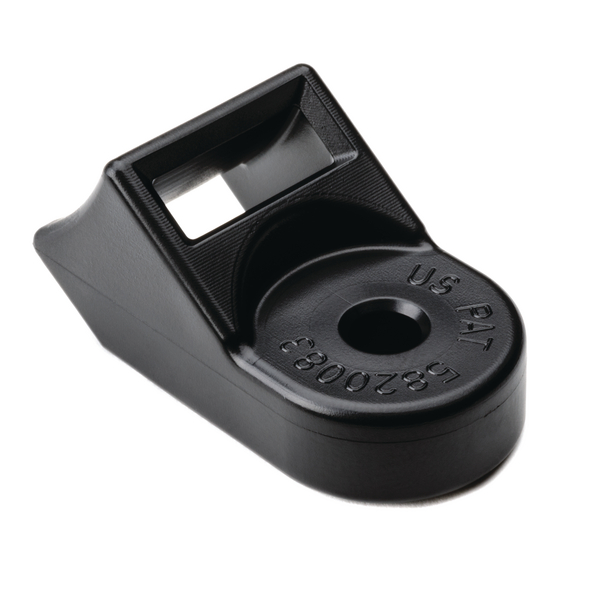

Cable tie mount for screw fixation, Ø4.7 mm, #10 (M5) Screw, black, 100pcs.
Art.-No. 151-00134 | HDM19-PA66HIRHSUV-BK Details

  • Design offers secure alignment to the bundle
  • Possible replacement of cushion clamps and/or metal clamps
  • Eliminates the needs for multiple sized fix diameter clamps
  • For heavy duty cable ties up to 13.5 mm width
  • Easy maintenance of bundle by simply changing the cable tie
Show more
Package size

Request your individual offer now

Application These heavy duty mounts (HDM) have been primarily designed for use in the automotive and truck industry. Nowadays they can be found in a variety of applications requiring heavy duty mounting in areas like the railway, defence and/or agriculture industry.
Colour Black (BK)
Fixation Method Screw Mounting and Rivet
Key product features vibration absorbing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type #10 (M5) Screw
Pack Content 100pcs.
Package Content packed in bag
PART DESCRIPTION HDM19-PA66HIRHSUV-BK
Product Family Standard torque mounts
Product Group Harness clip for heavy duty applications, for screws or threaded bolts
for Hole ∅ (FH) 4.7 mm
Height (H) 16.7mm
Height (H2) 8.0mm
Length (L) 36.3mm
Max. Tie Width (G) 12.7mm
Strap Width max. (G) 0.50"
Stud ∅ 4.8 mm
Stud ∅ 0.19"
Width (W) 19.3mm
Width (W2) 13.3mm
Width (W2) 0.52"
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Max. Torque (kgf-cm) 132.5kgf-cm
Max. Torque (lbf-In) 9.583lbf-ft
Operating Temperature -40 °C to +105 °C
Specifications
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised (Yes/No) Yes
GTIN-13 / EAN 4031026312880
Packaging 1 - Height (m) 0.3m
Packaging 1 - Length (m) 0.625m
Packaging 1 - Qty 100
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.0825
Packaging 1 - Weight (kg) 0.489478kg
Packaging 1 - Width (m) 0.44m
Packaging 3 - Height (m) 0.22225m
Packaging 3 - Length (m) 0.60325m
Packaging 3 - Qty 3000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.0532
Packaging 3 - Weight (kg) 13.7kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Height (m) 1.235m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.186
Packaging 4 - Weight (kg) 327.4kg
Packaging 4 - Width (m) 0.8m
UNSPSC Key 39121717
