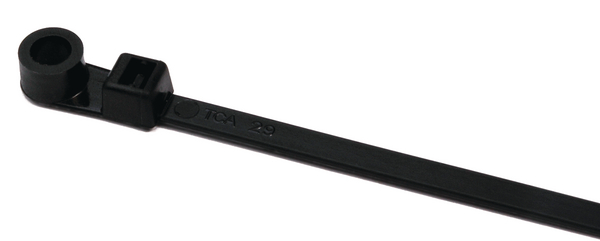

Fixing tie for screw fixation, inside serrated, ⌀1.5-32.0mm, black, 100pcs.
Art.-No. 113-03010
| T30MR-PA66-BK
|
Copied
- One-piece bundling and fixing tie
- Quick and easy installation
Request your individual offer now
Request quote
More products in this product group:
| Application |
This range of one piece cable ties have a built in mounting hole and once fastened around the cables the bundle can be simply secured to the panel with a screw or bolt. The tie is fitted to the panel first and then the cables can be added. |
| Ausführung | Inside Serrated |
| Bandverschluss | plastic pawl |
| Befestigungsart | Screw Mount |
| Bestell Typ | T30MRBK |
| Farbe | Black (BK) |
| Inhalt | 100ST |
| Inhalt per | pack |
| Kurzbeschreibung | Fixing tie 160x3.5 mm, screwable (4.3 mm), black |
| Lösbarer Verschluss | No |
| Material | Polyamide 6.6 (PA66) |
| Position Beschriftungsfläche | none |
| Produktbezeichnung | T30MR-PA66-BK |
| Produktfamilie | MR Series |
| Produktgruppe | 1-piece fixing ties with mounting head for screws |
| Typ | T30MR |
| Typ Befestigungsschraube | #8 (M4) Screw |
|
|
| Breite (W) | 3.5mm |
| Breite Kabelbandkopf (metrisch) | 13.4mm |
| Bündel ⌀ | 1.5-32.0mm |
| Bündel ⌀ max. | 32.0mm |
| Bündel ⌀ min. | 1.5mm |
| Dicke (T) | 1.2mm |
| Höhe (H) | 4.2mm |
| Höhe des Kabelbandkopfes (metrisch) | 7.9mm |
| Kopfbreite max. (G) (imperial) | 0.5" |
| Länge (L) | 160.0mm |
| Länge Kabelbandkopf (metrisch) | 28.4mm |
| Mindesthaltekraft | 135N |
| Mindesthaltekraft | 89.0N |
| Teil - Nettogewicht | 0.000787kg |
| für ⌀ Befestigungsloch (FH) | 4.3 mm |
Download
| Betriebstemperatur | -40 °C to +85 °C |
| Brandschutzeigenschaften | UL 94 V2 |
| CE konform | Yes |
| ELV konform | YES |
| Gefahrgut | No |
| Plenum Rating | AH-2 |
| ROHS konform | Yes |
| UL File Nummer | E64139 |
| UL Listung | Yes |
| UL Listung (gültig in USA) | Yes |
| UL anerkannt | Yes |
| UL anerkannt (gültig in USA) | Yes |
| UV-beständig | No |
| Zertifiziert nach CSA | No |
| Zulassungen/Normen |
|
| Zulassungen/Normen | UL 62275 |
|
|
|
| EAN / GTIN | 4031026108186 |
| Ursprungsland | MX |
| Verpackung 1 - Beschaffenheit | bag |
| Verpackung 1 - Breite, gefüllt (m) | 0.13m |
| Verpackung 1 - Gewicht (kg) | 0.0847kg |
| Verpackung 1 - Höhe (m) | 0.025m |
| Verpackung 1 - Länge (m) | 0.265m |
| Verpackung 1 - Menge | 100 |
| Verpackung 1 - Volumen (m³) | 0.00086125m³ |
| Verpackung 3 - Beschaffenheit | bag |
| Verpackung 3 - Breite (m) | 0.7112m |
| Verpackung 3 - Höhe (m) | 0.0001016m |
| Verpackung 3 - Länge (m) | 0.889m |
| Verpackung 3 - Volumen (m³) | 0.0001m³ |
