Fixing tie for edge, outside serrated, ⌀4.0-31.0mm, black, 500pcs.
Art.-No. 156-00788 | T50SOSEC5A-PA66HS/PA66HIRHS-BK

Copied

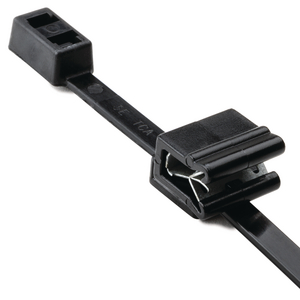

  • Pre-assembled 2-piece fixing tie with EdgeClip
  • Cable tie head can be moved after bundling
  • EC9, EC10, EC21 and EC22 are for minimum bundle diameters of 1 mm
  • For edges of 1 – 3 mm

Request your individual offer now

Application These cable ties and EdgeClip assemblies are ideal for use where holes are not acceptable or where due to temperature problems adhesives will fail. These assemblies are widely used for fixing and bundling cables, pipes and hoses within the automotive industry, harness making, panel building and electrical industry.
Ausführung Outside Serrated
Befestigungsart EdgeClip, sideway, assembled, 2 piece
Bestell Typ T50S0SEC5A
Bezeichnung Available with either 'inside' or 'outside' serrated ties these two piece assemblies simply push onto an edge with thicknesses from 1.0 to 3.0mm. The high 'pull off' forces are due to the integrated metal clamp.
Different EdgeClip variations are available. One version allows for cables to run parallel to the edge, whilst another allows for installation at 90 degrees to the edge.
The clip is simply pushed on by hand and held firmly in place by the integrated metal clamp. No fixing hole is necessary.
Combined with the outside serrated (OS) ties, specially designed to protect cables from chafing and wear, the EdgeClip family provides an excellent fastening solution.
Farbe Black (BK)
Fußteil Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Inhalt 500ST
Inhalt per bag
Kabelbinder Polyamide 6.6, heat stabilised (PA66HS)
Lösbarer Verschluss No
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Position Beschriftungsfläche none
Produktbezeichnung T50SOSEC5A-PA66HS/PA66HIRHS-BK
Produktfamilie EdgeClip-Series, 1.0 - 3.0 mm, side fixing
Produktgruppe 2-piece fixing ties for edges
Typ T50SOSEC5A

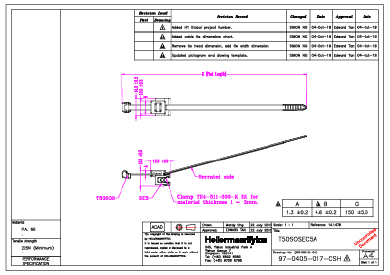

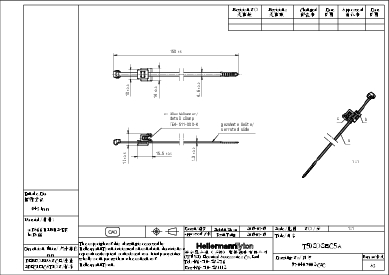

Breite (W) 4.6mm
Breite (W2) 12.0mm
Bündel ⌀ 4.0-31.0mm
Bündel ⌀ max. 31.0mm
Bündel ⌀ min. 4.0mm
Dicke (T) 1.3mm
Höhe (H) 1.3mm
Höhe (H2) 15.5mm
Länge (L) 150mm
Länge (L2) 14.0mm
Mindesthaltekraft 225N
für Blechstärke min - max 1 - 3 mm
Betriebstemperatur -40 °C to +105 °C
Betriebstemperatur Fußteil -40 °C to +105 °C
Brandschutzeigenschaften UL 94 HB
ROHS konform Yes
Zulassungen/Normen
EAN / GTIN 4031026428376
Ursprungsland SG
ETIM 7.0 EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Code 39121703
