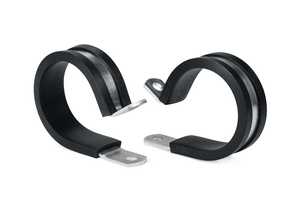

P-clamp closed, Dmax=9.5mm, ⌀5.2 mm, black, 100pcs.
Art.-No. 211-15080
| ALU8C-AL/CR-BK
|
Copied
- Simple and secure pipe or cable fixation
- Can be combined with chloroprene rubber for vibration resistance
- Ideal for use in high temperature applications
- Suitable for applications needing strength of metal components
Request your individual offer now
Request quote
More products in this product group:
| Application | Manufactured from a high quality aluminium, these metal P-Clamps provide flexibility whilst providing a permanent fixing in the most arduous of environments. The addition of a chloroprene insert provides the cable or pipe bundle with a high degree of protection against vibration, reducing noise and also providing electrical isolation. They are commonly used in caravan construction, the defence and railway industry as well as in the renewable energy sector. |
| Ausführung | Closed |
| Befestigungsart | screw-hole |
| Bestell Typ | ALU8C |
| Bezeichnung | Aluminium Clip ALU8C |
| Farbe | Black (BK) |
| Inhalt | 100ST |
| Inhalt per | pcs. |
| Kurzbeschreibung | Aluminium P-Clip with Chloroprene Insert 9.5 mm |
| Material | Aluminium alloy (AL), Chloroprene Rubber (CR) |
| Produktbezeichnung | ALU8C-AL/CR-BK |
| Produktfamilie | Alu-P-Clamp with / without chloroprene insert |
| Produktgruppe | Aluminium P-Clamps |
| Typ | ALU8C |
| Breite (W) | 16.3mm |
| Breite (W2) | 12.7mm |
| Bündel ⌀ | 9.5mm |
| Bündel ⌀ max. | 9.5mm |
| Lochabstand (F2) | 15.0mm |
| Lochabstand (F3) | 5.5mm |
| Nennmaß ⌀ | 9.5mm |
| Nennmaß (imperial) | 0.37" |
| Radius (R) | 1.6mm |
| Teil - Nettogewicht | 0.004416kg |
| Wanddicke (WT) | 3.7mm |
| Wanddicke (WT) (imperial) | 0.15" |
| Wanddicke (WT2) | 0.8mm |
| für ⌀ Befestigungsloch (FH) | 5.2 mm |
Download
| Betriebstemperatur | -20 °C to +80 °C |
| ELV konform | YES |
| Gefahrgut | No |
| Nato Nummer | 5340-12-146-5334 |
| ROHS konform | Yes |
| UV-beständig | Yes |
| Zulassungen/Normen |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable by design focuses on product solutions that reduce waste, improve longevity or support subsequent reuse and recyclability. |
|
|
|
| EAN / GTIN | 4031026129105 |
| Ursprungsland | DE |
| Verpackung 1 - Beschaffenheit | bag |
| Verpackung 1 - Breite, gefüllt (m) | 0.3m |
| Verpackung 1 - Gewicht (kg) | 0.4518kg |
| Verpackung 1 - Höhe (m) | 0.05m |
| Verpackung 1 - Länge (m) | 0.16m |
| Verpackung 1 - Menge | 100 |
| Verpackung 1 - Volumen (m³) | 0.0024m³ |
| Verpackung 3 - Beschaffenheit | box |
| Verpackung 3 - Breite (m) | 0.24m |
| Verpackung 3 - Gewicht (kg) | 2.504kg |
| Verpackung 3 - Höhe (m) | 0.133m |
| Verpackung 3 - Länge (m) | 0.33m |
| Verpackung 3 - Menge | 500 |
| Verpackung 3 - Volumen (m³) | 0.0105m³ |
| Verpackung 4 - Beschaffenheit | pallet |
| Verpackung 4 - Breite (m) | 0.8m |
| Verpackung 4 - Gewicht (kg) | 221.24kg |
| Verpackung 4 - Höhe (m) | 1.208m |
| Verpackung 4 - Länge (m) | 1.2m |
| Verpackung 4 - Menge | 40000 |
| Verpackung 4 - Volumen (m³) | 1.16m³ |
