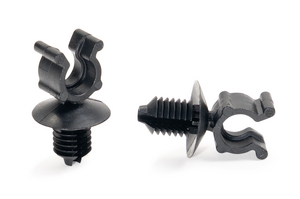

Corrugated tube clip for hole (round), Ø10.0mm, black, 500pcs.
Art.-No. 155-17801
| CTC10FT9-PA66HIRHS-BK
|
Details
- CTC clamps for a variety of nominal diameters
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
Request your individual offer now
Request quote
More products in this product group:
| Application | CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed. |
| Colour | Black (BK) |
| Conduit ∅ | IWS 8,5-13 |
| Fixation Method | Fir Tree |
| Key product features | for convoluted tubes or with rib, reusable, removable |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| Pack Content | 500pcs. |
| Package Content packed in | bag |
| PART DESCRIPTION | CTC10FT9-PA66HIRHS-BK |
| Product Family | CTC-Series |
| Product Group | Fixing elements for corrugated tubing, with fir tree |
| Variant | Clips |
| Attach to Ø | NW 10 |
| Disc ∅ | 23.0mm |
| Disc ∅ | 0.87" |
| for Hole ∅ (FH) | 8.7 - 9.0 mm |
| for Panel Thickness min - max | 3 - 5 mm |
| Height (H) | 22.7mm |
| Height (H2) | 12.2mm |
| Nominal ∅ | 10.0mm |
| Nominal ∅ | 0.38" |
| Panel Thickness | 0.12 - 0.20" |
| Panel Thickness max. | 3.0 - 5.0mm |
| Panel Thickness max. (imperial) | 0.20" |
| Panel Thickness min. (imperial) | 0.12" |
| Width (W) | 8.0mm |
Download
|
|
|
| GTIN-13 / EAN | 4031026215242 |
| Packaging 1 - Height (m) | 0.3m |
| Packaging 1 - Length (m) | 0.625m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.0825m³ |
| Packaging 1 - Weight (kg) | 0.753478kg |
| Packaging 1 - Width (m) | 0.44m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 6000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 9.861736kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.249m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 72000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.199m³ |
| Packaging 4 - Weight (kg) | 139.272kg |
| Packaging 4 - Width (m) | 0.8m |
