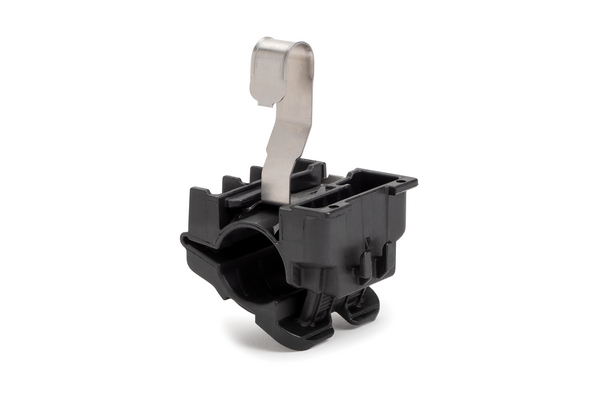

Cable clip with pipe/tube holder, Dmin=12.7mm, Dmax=19.6mm
Art.-No. 156-04192 | IRCBNEXTT-PA66HIRHSUV/SS304-BK Details

  • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
  • Designed for applications where space is limited or when a staggered mounting option is not ideal
  • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
  • The variants for bolt attachment enable time-saving installation with a reliable hold

Request your individual offer now

Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
Colour Black (BK)
Fixation Method Mounting Hanger
Key product features for multiple routing, lockable, releasable, stackable, vibration absorbing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS304)
PART DESCRIPTION IRCBNEXTT-PA66HIRHSUV/SS304-BK
Pack Content 200pcs.
Package Content packed in box
Product Family screwable, Inline Ratchet Clamps
Product Group Heavy duty cable clamps
Releasable Closure (Yes/No) Yes
Type IRCBNEXTT
Attach to Diameter 0.34 "
Attach to Ø 8.6
Bundle Diameter max (metric) 19.6mm
Bundle ∅ min. 12.7mm
Height (H) 55.5mm
Length (L) 79.9mm
Min.Tensile Strength 110N
Strap Width max. (G) 0.52"
Width (W) 34.8mm
Width (W2) 0.28"
Width (W2) 6.8mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
UV-Stabilised Yes
GTIN-13 / EAN 4031026688343
Packaging 1 - Qty 200
Packaging 1 - Type pack
UNSPSC Key 39121702
