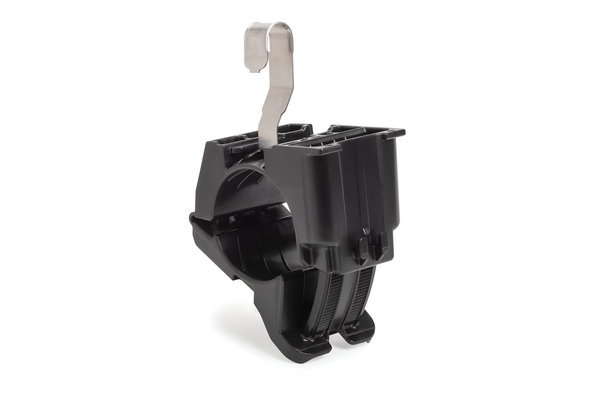

Cable clip with pipe/tube holder, Dmin=19.3mm, Dmax=36.1mm
Art.-No. 156-04193 | IRCCNEXTT-PA66HIRHSUV/SS304-BK |

Copied
Nexttracker seriers, IRCCNEXT.

    • Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
    • Designed for applications where space is limited or when a staggered mounting option is not ideal
    • Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
    • The variants for bolt attachment enable time-saving installation with a reliable hold
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws.
    Befestigungsart Mounting Hanger
    Besonderheiten for multiple routing, lockable, releasable, stackable, vibration absorbing
    Bestell Typ RCCNEXTT/10
    Farbe Black (BK)
    Inhalt 200ST
    Inhalt per pack
    Lösbarer Verschluss Yes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Stainless Steel (SS304)
    Produktbezeichnung IRCCNEXTT-PA66HIRHSUV/SS304-BK
    Produktfamilie screwable, Inline Ratchet Clamps
    Produktgruppe Heavy duty cable clamps
    Typ IRCCNEXTT
    Binderbreite max. (G) (imperial) 0.52"

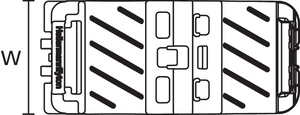

    Breite (W) 34.8mm
    Breite (W2) 6.8mm
    Bündel ⌀ 19.3-36.1mm
    Bündel ⌀ max. 36.1mm
    Bündel ⌀ min. 19.3mm
    Höhe (H) 71.5mm
    Länge (L) 115.9mm
    Mindesthaltekraft 110N
    Passt für ⌀ 8.6
    Teil - Nettogewicht 0.01kg
    Betriebstemperatur -40 °C to +105 °C
    Brandschutzeigenschaften UL 94 HB
    CE konform No
    ELV konform YES
    Gefahrgut No
    Halogenfrei Yes
    ROHS konform Yes
    UL Listung No
    UL Listung (gültig in USA) No
    UL anerkannt No
    UL anerkannt (gültig in USA) No
    UV-beständig Yes
    Zertifiziert nach CSA No
    Zulassungen/Normen
    EAN / GTIN 4031026688350
    Ursprungsland MX
    Verpackung 1 - Beschaffenheit carton
    ETIM 7.0 EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Code 39121705
