04/10/2024

P-clamp short, Dmin=12.7mm, Dmax=19.5mm, ∅5.6 mm, 180°, black, 280pcs.
Art.-No. 151-02875 | RCBHANGER-PA66HIRHSUV/ZN-BK Details

  • Impact modified, heat and UV stabilized PA66 provides long-term durability in solar applications.
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly.
  • Release feature allows for quick adjustments and maintenance.
  • First Solar specific steel mounting hanger tolerates high torque and is treated to resist chemicals.

Request your individual offer now

Application The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
Colour Black (BK)
Description The Series 6 Ratchet P-Clamp Solar Hanger offers one-handed, toolless simplicity and size versatility for managing wires and cables on First Solar modules. The robust design and solar-optimized materials make it ideal for heavy duty, outdoor applications. The one-piece adjustable clamp can be closed by hand to the desired diameter, replacing multiple sizes of fixed diameter fasteners. The integrated release feature enables easy and nondestructive removal of cables by inserting a flat-head screwdriver. This allows the clamp to be reused without removing it.
Fixation Method Mounting Hanger
Key product features vibration absorbing, removable, releasable, for multiple routing
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Zinc plated (ZN)
PART DESCRIPTION RCBHANGER-PA66HIRHSUV/ZN-BK
Pack Content 280pcs.
Package Content packed in box
Product Family Ratchet P-Clamp Hanger
Product Group Fixing elements for tubes and harnesses
Type RCBHANGER
Variant Short
Angle 180
Bundle Diameter max (metric) 19.5mm
Bundle ∅ min. 12.7mm

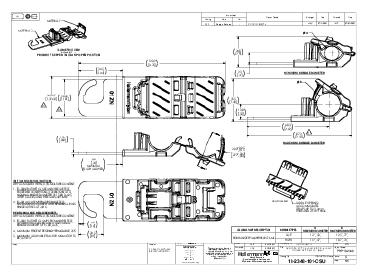

Height (H) 24.8mm
Height (H2) 35.5mm
Length (L) 115.4mm
Length (L2) 81.7mm
Min.Tensile Strength 445N
Width (W) 34.9mm
Width (W2) 1.18"
Width (W2) 30.0mm
for Hole ∅ (FH) 5.6 mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Flammability UL 94 HB
Halogen-free Yes
Hazardous Goods No
Operating Temperature -40 °C to +105 °C
Plenum Rating AH-2
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
UL Listed (US and Canada) Yes
UL Listed (US and Canada) Yes
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UL-File Number E64139
UV-Stabilised Yes
GTIN-13 / EAN 4031026663210
Packaging 1 - Qty 280
Packaging 1 - Type bag
Packaging 1 - Weight (kg) 2.800001kg
Packaging 3 - Height (m) 0.2159m
Packaging 3 - Length (m) 0.606425m
Packaging 3 - Qty 280
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.052
Packaging 3 - Weight (kg) 8.43kg
Packaging 3 - Width (m) 0.396875m
Packaging 4 - Qty 8400
UNSPSC Key 39121702
