Crimp Tools
Art.-No. 924-00339 | ALDIE150-185-MET-ML

Copied
  • Available in sizes ranging from 6mm² to 300mm²
  • C-type design
  • Dies are sold separately
  • Cross-flat size markings are embossed on the lug and link after crimping
  • Die radius: 60°
Show more

Request your individual offer now

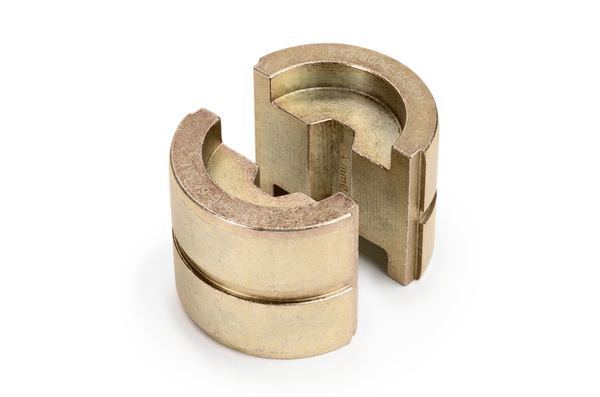

Application The hexagonal head crimp dies are designed for use with the 12 tonne hydraulic crimper (HYCP400). These dies are designed to accommodate a range of aluminum lugs and sleeves, with cross-flat dimensions that adhere to Australian and New Zealand standards. The dies are inserted into the crimper by sliding them into the designated slots on the head and ram.
Bestell Typ ALDIE150-185
Bezeichnung Aluminium Die 150-185mm²
Farbe Metal (ML)
Inhalt 1ST
Inhalt per box
Material Metal (MET)
Produktbezeichnung ALDIE150-185-MET-ML
Produktfamilie Hydraulic Die for Aluminium Lugs
Produktgruppe Crimp Tools
Typ ALDIE150-185
A/F Gewinde (A/F2) 22mm
Breite (W) 18mm
Breite (W2) 25.4mm
Leiterquerschnitt (mm²) von bis 150-185mm²
Tiefe (D) 11mm
