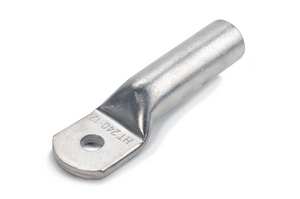

Copper Lug Long Barrel Short Palm
Art.-No. 924-00713 | CL240-12LB-CU-SR |

Copied
Copper lug long barrel, CL_LB series.

    • All Long Barrel Short Palm Lugs do not have an inspection hole
    • Solder sealed for outdoor use
    Add to watchlist

    Request your individual offer now

     Request quote
    Application Copper cable lugs are used to terminate copper conductors, and their longer barrels provide an increased surface area for more effective crimping. The HellermannTyton range of Copper Lugs and Links complies with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995 and is manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. These lugs are highly conductive and capable of handling very high currents. A crimping tool is recommended for this application.
    Bestell Typ CL240-12LB
    Bezeichnung COPPER LUG LONG BARREL SHORT PALM 240MM² M12 STUD
    Farbe Silver-matt (MTSR)
    Inhalt 1ST
    Inhalt per pcs.
    Material Copper (CU)
    Produktbezeichnung CL240-12LB-CU-SR
    Produktfamilie LB-Series
    Produktgruppe Copper Lug Long Barrel Short Palm
    Typ CL240-12LB
    A/F Gewinde (A/F2) 23.1mm
    Außen ⌀ (OD) 31mm
    Bolzen ⌀ M12
    Breite (W) 41mm
    Dicke (T) 7.1mm
    Hauptkabel bis mm² 61 x 2.25mm²
    Innen ⌀ (ID) 21.2mm
    Länge (L) 134mm
    Länge (L2) 80mm
    für ⌀ Befestigungsloch (FH) 13.0 mm
    Betriebstemperatur -55 °C to +155 °C
    Zulassungen/Normen
    Zulassungen/Normen AS/NZS4325 Part 1
    EAN / GTIN 9349519007034
    Ursprungsland IN
    Zollwarentarif Nr. 85369090
