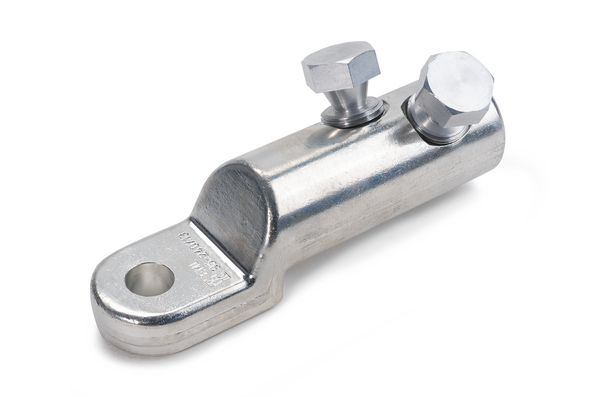

Mechanical Shear-Bolt Lug
Art.-No. 924-00861
| SOL185-400-AL-SR
|
Copied
- Wide cross section application range
- Three connectors cover the range from 25mm² to 400mm²
- Suitable for Copper and Aluminum Conductors (excluding class 5 & 6 fine stranded cables)
- Suitable for all conductor types and shapes
- High clamping forces
- Reduces inventory range and volume
- Easy installation
- No special tools required (Hydraulic pump/heads) reducing installation cost
Request your individual offer now
Request quote
More products in this product group:
| Application | These lugs have been developed for low and medium voltage cables suitable for outdoor applications. The range taking connector technology removes the need for specific sized lugs and sleeve connectors. It boosts a simple yet reliable execution method irrespective of the installer’s skill level. |
| Colour | Silver-matt (MTSR) |
| Description | SHEAR OFF MECHANICAL ALLOY LUG 185MM² - 400MM² M12 |
| Local order number | SOL185-400 |
| Material | Aluminium alloy (AL) |
| PART DESCRIPTION | SOL185-400-AL-SR |
| Pack Cont. | 1pc. |
| Package Content packed in | pcs. |
| Product Family | SOL-Series |
| Product Group | Mechanical Shear-Bolt Lug |
| Type | SOL185-400 |
