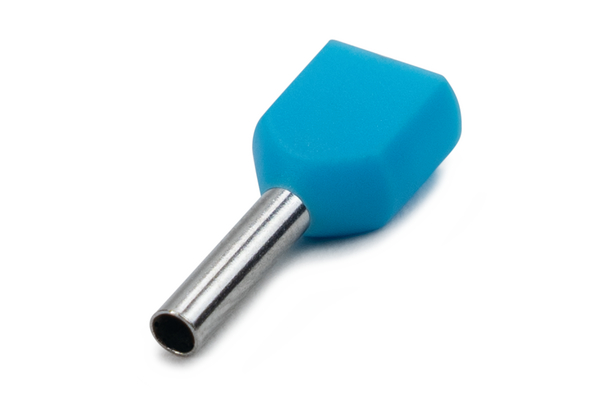

Twin bootlace terminal, conductor size 0.75mm2, 100pcs, blue
Art.-No. 924-00493
| BLT0.75-CU/PA66-BU
|
Copied
- Wide range of sizes available to suit various wire sizes
- Reduces the possibility of short circuiting
- Colour coded for easier identification
- Packaged in resealable bag
- REACH compliant
Show more
Show less
Request quote
More products in this product group:
| Application | Twin bootlace terminals are designed to terminate two stranded wires into a single insulated ferrule, allowing for a neat and secure connection into one terminal point. This is ideal for simplifying wiring layouts and reducing clutter in control panels, switchboards, and modular connectors. The nylon sleeve (PA66) provides insulation, strain relief, and resistance to abrasion and chemicals. Twin ferrules are especially useful when two conductors need to be joined for common connections, such as daisy-chaining or parallel wiring. |
| Colour | Blue (BU) |
| Description | Twin bootlace terminal, conductor size 0.75mm², blue |
| Local order number | BLT0.75 |
| Material | Copper (CU), Polyamide 6.6 (PA66) |
| Max Voltage | 600V |
| PART DESCRIPTION | BLT0.75-CU/PA66-BU |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Nylon Insulated Twin Bootlace Terminals |
| Product Group | Twin Bootlace Ferrules |
| Type | BLT0.75 |
| GTIN-13 / EAN | 9349519001179 |
| Packaging 1 - Height (m) | 0.163m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | pack |
| Packaging 1 - Weight (kg) | 0.02kg |
| Packaging 1 - Width (m) | 0.104m |
| Packaging 2 - Height (m) | 0.11m |
| Packaging 2 - Length (m) | 0.21m |
| Packaging 2 - Qty | 3000 |
| Packaging 2 - Type | carton |
| Packaging 2 - Volume (m³) | 0.0032m³ |
| Packaging 2 - Weight (kg) | 0.69kg |
| Packaging 2 - Width (m) | 0.14m |
| Packaging 3 - Height (m) | 0.26m |
| Packaging 3 - Length (m) | 0.36m |
| Packaging 3 - Qty | 18000 |
| Packaging 3 - Type | carton |
| Packaging 3 - Volume (m³) | 0.0281m³ |
| Packaging 3 - Weight (kg) | 4.658kg |
| Packaging 3 - Width (m) | 0.30m |
| Packaging 4 - Type | pallet |
