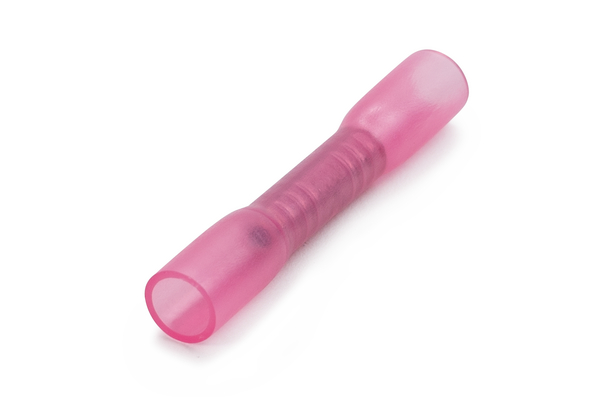

Heat shirnk crimp link terminal double grip, conductor sizes 0.5 - 1.5mm2, 100pcs, red
Art.-No. 924-00454
| BSW1-CU/PVC-RD
|
Copied
- Double grip to ensure stronger pull out force
- Mastic adhesive used for moisture protection
- Colour coded for easy identification
Request your individual offer now
Request quote
More products in this product group:
| Application | Heat shrink crimp links are used to join two wires together, providing a durable and reliable electrical connection. The single grip design ensures optimal wire retention during crimping, while the heat shrink tubing offers an additional environmental seal against moisture, dust and other contaminants. These terminals are suitable for both indoor and outdoor applications, offering excellent insulation and mechanical protection in harsh environments. Once heated, the tubing shrinks to form a tight seal around the wire, preventing exposure and reducing the risk of corrosion or electrical failure. Crimp with the HYYT1 prior to heat application to ensure a secure mechanical bond. |
| Colour | Red (RD) |
| Description | CRIMP LINK PRE-INS W/PROOF S/GR 0.5MM²-1.5MM² RED |
| Local order number | BSW1 |
| Material | Copper (CU), Polyvinylchloride (PVC) |
| Max Current | 19A |
| Max Voltage | 600V |
| PART DESCRIPTION | BSW1-CU/PVC-RD |
| Package Content | 100pcs. |
| Package Content packed in | bag |
| Product Family | Single Grip Pre-Insulated Terminals |
| Product Group | Heat Shrink Crimp Link (Waterproof Connectors) |
| Type | BSW1 |
