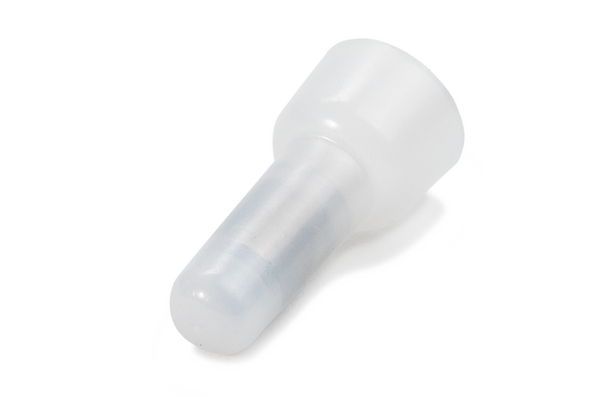

Closed end connector terminal, conductor sizes 4 - 6mm2, 25pcs, transparent
Art.-No. 924-00501 | CE5-AL/PA66-CL |

Closed end connector, CE series.

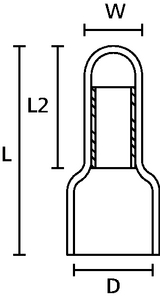

Closed End Connector Series, Front View

Insulated
Packaged in resealable bags
REACH compliant

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Closed End Connectors >

Base Data

Application	The Closed-End Connectors are designed for electrical termination, ensuring a safe, insulated connection.They provide a secure and reliable connection, preventing short circuits and electrical faults. A terminal crimping tool is recommended for this application.
Colour	Transparent (CL)
Description	Closed End Connector
Local order number	CE5
Material	Aluminium (AL), Polyamide 6.6 (PA66)
Max Voltage	600V
PART DESCRIPTION	CE5-AL/PA66-CL
Package Content	25pcs.
Package Content packed in	bag
Product Family	Bootlace Terminals
Product Group	Closed End Connectors
Type	CE5

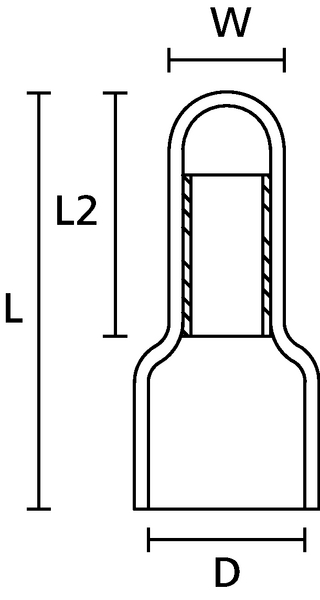

Product Dimensions

Conductor Size Range mm²	4.0-6.0mm²
Diameter (D)	10.5mm
Length (L)	25.5mm
Length (L2)	15.7mm
Width (W)	7mm

Downloads

Specifications

Operating Temperature	+105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519001407
