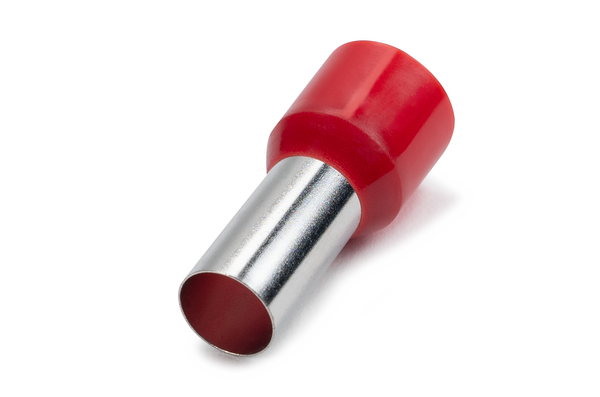

Bootlace Terminals
Art.-No. 924-00487 | BL35-CU/PA6-RD Details

  • Colour coded for easier identification
  • Reduces the possibility of short circuiting
  • Packaged in resealable bags
  • REACH compliant

Request your individual offer now

Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
Colour Red (RD)
Description Bootlace Ferrule
Material Copper (CU), Polyamide 6 (PA6)
PART DESCRIPTION BL35-CU/PA6-RD
Pack Content 10pcs.
Package Content packed in bag
Product Family Nylon Insulated Bootlace Ferrules
Product Group Bootlace Terminals
Type BL35
Diameter (D) 12.7mm
Length (L) 30mm
Length (L2) 14mm
Length (L3) 16mm
Max Voltage 600V
∅ (D2) 8.3mm
Halogen-free Yes
Operating Temperature +105 °C
ROHS compliant Yes
Specifications
