Twin Bootlace Ferrules
Art.-No. 924-00498 | BLT6-CU/PA66-GN |

Copied

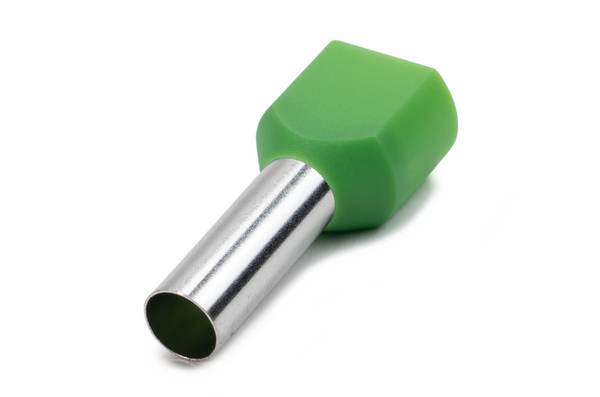

Twin bootlace ferrule, BLT6.

    • Terminates two wires
    • Colour coded for easier identification
    • Reduces the possibility of short circuiting
    • Packaged in resealable bags
    • REACH compliant
    Show more
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. The Twin Bootlace Ferrule range is designed to terminate two wires in the same terminal. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
    Colour Green (GN)
    Description Twin Bootlace Ferrule
    Material Copper (CU), Polyamide 6.6 (PA66)
    PART DESCRIPTION BLT6-CU/PA66-GN
    Pack Content 25pcs.
    Package Content packed in bag
    Product Family Nylon Insulated Twin Bootlace Terminals
    Product Group Twin Bootlace Ferrules
    Type BLT6
    ⌀ (D2) 4.8mm
    Conductor Size (mm²) 6
    Diameter (D) 10mm
    Length (L) 26mm
    Length (L2) 12mm
    Length (L3) 14mm
    Max Voltage 600V
    Width (W) 6.9mm
    Halogen-free Yes
    Operating Temperature -30 °C to +105 °C
    ROHS compliant Yes
    Specifications
    GTIN-13 / EAN 9349519001223
