Fixing tie for hole (round), outside serrated, Ø1.6-30.0mm, black, 100pcs.
Артикулен 157-00017 | OS170-FT7-PA66-BK Подробности

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
покажи повече

Заявете вашата индивидуална оферта сега

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool EVOcut, MK9P, MK9P w/ Upper air, MK10-SB, MK21, EVO9SP, EVO9HT
Colour Black (BK)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 6.6 (PA66)
Pack Cont. 100pcs.
Package Content packed in bag
PART DESCRIPTION OS170-FT7-PA66-BK
Product Family Fir tree parts FT7
Product Group 1-piece fixing ties with fir tree, with disc, for round holes
Releasable Closure (Yes/No) No
Tie Closure plastic pawl
Bundle Diameter max (metric) 30.0mm
Bundle ∅ 1.6-30.0mm
Bundle ∅ min. 1.6mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.8 - 7.2 mm
for Panel Thickness min - max 0.6 - 4.5 mm
for Panel Thickness min - max 0 - 0.2 "
Hole Depth 9.9mm

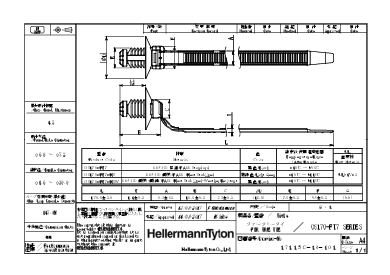

Length (L) 170.0mm
Length (L2) 15.5mm
Min.Tensile Strength 147N
Panel Thickness max. 0.6 - 4.5mm
Thickness (T) 1.4mm
Width (W) 5.3mm
Width (W2) 7.5mm
CE Certification No
CSA Certified No
Flammability UL 94 V2
Halogen-free Yes
Operating Temperature -40 °C to +85 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin JP
GTIN-13 / EAN 4944387927771
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121703
