Fixing tie for hole (round), outside serrated, Ø1.0-35.0mm, grey, 1000pcs.
Артикулен 157-00115 | T50SOSFT8E-PA46-GY Подробности

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
покажи повече

Заявете вашата индивидуална оферта сега

Application Primarily designed for fixing cable harnesses in the automotive industry, their simplicity and ease of use has resulted in these parts being used in other industries, for example aviation, switch gear manufacturer, white goods manufacturer.
Application Tool MK3PNSP2, EVOcut, MK7P, MK10-SB, MK20, EVO7, EVO7SP, EVO7i, EVO9, EVO9SP
Colour Grey (GY)
Fixation Method Fir tree for round holes
Identification Plate Position none
Material Polyamide 4.6 (PA46)
Pack Cont. 1000pcs.
Package Content packed in bag
PART DESCRIPTION T50SOSFT8E-PA46-GY
Product Family Fir Tree Parts FT8
Product Group 1-Piece Fixing Ties with Fir Tree, with Disc, for Round Holes
Releasable Closure (Yes/No) No

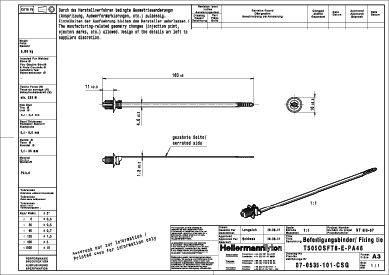

Short Description 1-Piece fixing tie 163x4.6 mm, with fir tree, grey
Tie Closure plastic pawl
Variant Outside Serrated
Bundle Diameter max (metric) 35.0mm
Bundle ∅ 1.0-35.0mm
Bundle ∅ min. 1.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 8.0 - 8.5 mm
for Panel Thickness min - max 0.6 - 6 mm
for Panel Thickness min - max 0 - 0.2 "
Length (L) 163.0mm
Min.Tensile Strength 225N
Panel Thickness max. 0.6 - 6.0mm
Thickness (T) 1.3mm
Weight/Unit 0.00156kg
Width (W) 4.6mm
CE Certification No
CSA Certified No
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Operating Temperature -40 °C to +130 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin DE
Customs Number 39269097
GTIN-13 / EAN 4031026436067
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 1000
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 1.603597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.368m
Packaging 3 - Length (m) 0.584m
Packaging 3 - Qty 5000
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.083
Packaging 3 - Weight (kg) 8.837985kg
Packaging 3 - Width (m) 0.386m
Packaging 4 - Height (m) 1.248m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 60000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.198
Packaging 4 - Weight (kg) 127.08kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC000046
ETIM 8.0 Key EC000046
ETIM 9.0 Key EC000046
UNSPSC Key 39121717
