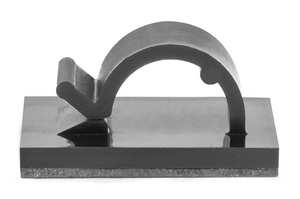

Cable clip for magnetic use, Dmax=5.0mm
Артикулен 151-04463
| MAGRB5-PA66/NDFEBR5-BK
|
Copied
- Flat design to use in applications with limited space
- Quick to install and easy to adjust once fitted (reusable)
- Flexible neodymium magnet with adhesive backing
- Can be used without cable ties offering process optimization
- Different sizes for various bundle diameters available
- Designed to hold wires, cables or hoses
- Ideal for use on steel surfaces where it is not possible to drill holes
- Suitable for challenging surfaces like slightly dirty areas where adhesives fail
Заявете вашата индивидуална оферта сега
Оферта
Още продукти от тази продуктова група:
| Application | Magnetic mounts and clips are innovative solutions designed to meet the demands of modern cable management and mounting needs. They combine ease of use with versatility, offering a practical and efficient alternative to traditional mounting methods. Whether in dynamic work environments or temporary setups, these mounts and clips provide advantages that set them apart from other options on the market. |
| Colour | Black (BK) |
| Fixation Method | Magnet |
| Magnetic pull strength (kgf) | 0.00 |
| Material | Polyamide 6.6 (PA66), Neodymium alloy R5 (NDFEBR5) |
| PART DESCRIPTION | MAGRB5-PA66/NDFEBR5-BK |
| Package Content | 25pcs. |
| Package Content packed in | bag |
| Product Family | MAGRB-Series |
| Product Group | Mounts with cable clip, magnetic |
| Short Description | MAGRB-Series cable clip for magnetic use, Diameter max=5.0mm |
| Type | MAGRB5 |
| Variant | Clip |
| Weight/Unit | 0.01kg |
Изтегли
| CE Certification | No |
| ELV compliant (Article 4 - 2) | YES |
| Flammability | UL 94 V2 (excluding adhesive) |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
