Cable clip for hole (round), Ø4.7 mm, Dmin=5.0mm, Dmax=12.7mm, natural, 500pcs.
Артикулен 151-75000 | WPC5-PA66-NA Подробности

  • Accept single or multiple wires
  • Simply push wires into place
  • Arrowhead design for simple and secure installation
  • Access to panel only needed from one side
Размер на опаковката

Заявете вашата индивидуална оферта сега

Application With the increased complexitiy of electronic and electrical installations the use of WPC Clips enables cables to be installed using a minimum amount of space. A perfect solution for the frame/rails of controll cabinets or the white goods industry.
Colour Natural (NA)
Fixation Method Plug-in mounting
Key product features for faster processing, for narrow space, reusable, small diameter
Material Polyamide 6.6 (PA66)
Pack Cont. 500pcs.
Package Content packed in bag
PART DESCRIPTION WPC5-PA66-NA
Product Family WPC-Series
Product Group Wire push in clips
Variant Closed

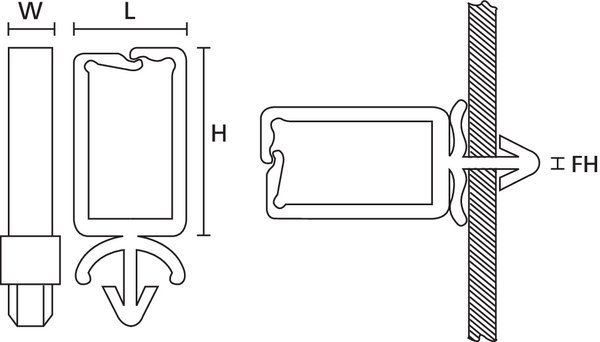

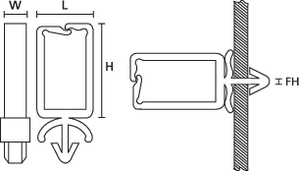

Bundle Diameter max (metric) 12.7mm
Bundle ∅ 5.0-12.7mm
Bundle ∅ min. 5.0mm
Disc ∅ 15.0mm
for Hole ∅ (FH) 4.7 mm
for Panel Thickness min - max 0.8 - 4 mm
Height (H) 12.7mm
Length (L) 15.0mm
Nominal ∅ 5mm
Width (W) 5.25mm
Flammability UL 94 V2
Operating Temperature -40 °C to +85 °C
Specifications
UV-Stabilised (Yes/No) No
Country of Origin GB
GTIN-13 / EAN 4031026710440
ETIM 7.0 Key EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Key 39121702
