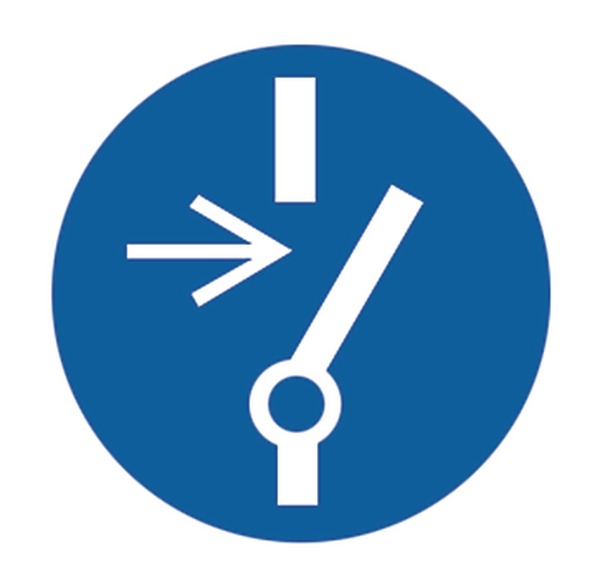

Security Label 100.0 mm blue
Артикулен 597-64305 | ASS4-F-150-BU Подробности

  • Durable printing on high-grade self-adhesive vinyl
  • Long lasting and highly visible
  • Labels display internationally recognised symbols

Заявете вашата индивидуална оферта сега

Application Method The functionality and durability of the labels can be negatively affected if improperly processed or applied. All surfaces to be bonded must be clean, dry as well as free from dust and grease. Avoid touching the adhesive surface of the label as this could impair the application performance.
Chem. Material Properties self extinguishing, resistant to oils, water and solvents
Colour Blue (BU)
Colour of Print White (WH)
Material Type 150, Vinyl (150)
Pack Cont. 10pcs.
Package Content packed in pack
PART DESCRIPTION ASS4-F-150-BU
Product Family HELASIGN, Material 150
Product Group Mandatory signs
Self adhesive (Yes/No) Yes
Short Description Security Label 100.0 mm blue
Diameter (D) 100.00mm
Thickness (T) 80.0µm
Thickness of Foil 80µm
Thickness of foil test method ASTM D3652-83
Weight/Unit 0.0054kg
Width of Liner (WL) 110.00mm
Adhesive Acrylic
Curing Temperature from +10 °C
ELV compliant (Article 4 - 2) YES
Halogen-free No
Hazardous Goods No
Initial tack 110g/cm²
Initial tack ASTM D2979-71
Operating Temperature -40 °C to +80 °C
Peel strength 550 N/m
Peel strength test method PSTC 7
Pre-Printed Yes
Shear strength 120h
Shear strength test method FINAT FTM 7
Shelf Life Minimum 1 year upon receipt / maximal 2 years after production date.
Specifications
Country of Origin DE
Customs Number 49119900
GTIN-13 / EAN 4031026180793
Labels per Sheet 1pc.
Packaging 1 - Height (m) 0.005m
Packaging 1 - Length (m) 0.275m
Packaging 1 - Qty 10
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.00015
Packaging 1 - Weight (kg) 0.054001kg
Packaging 1 - Width (m) 0.11m
Packaging 3 - Height (m) 0.24m
Packaging 3 - Length (m) 0.55m
Packaging 3 - Qty 500
Packaging 3 - Type carton
Packaging 3 - Volume (m³) 0.0515
Packaging 3 - Weight (kg) 27.5kg
Packaging 3 - Width (m) 0.39m
Sheets per Pack 10
Storage conditions 50% relative humidity., The storage in the original packaging is recommended., Please avoid warehousing under impacts such as high humidity, heat and coldness.
Storage Temperature +21 °C
ETIM 7.0 Key EC001777
ETIM 8.0 Key EC001777
ETIM 9.0 Key EC001777
