Plug-in seal 7 mm green
Артикулен 143-52935 | CCBOX-POM-GN Подробности

  • Tamper evident plastic box seals
  • Designed to ensure ease of application and removal
  • Securely lock lidded containers in transit
  • New product designs available through dedicated engineering resources
  • CCBOX2 are designed for SSI Schaefer FK, LTB, and KB series
  • CCBOX3 are deisgned for SSI Schaefer KMB series
  • BP are designed for SSI Schaefer FK series
покажи повече

Заявете вашата индивидуална оферта сега

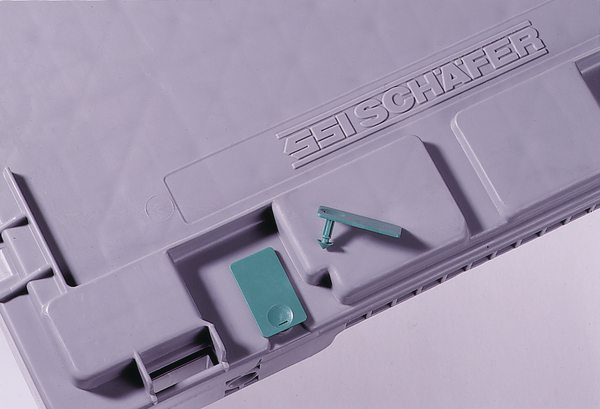

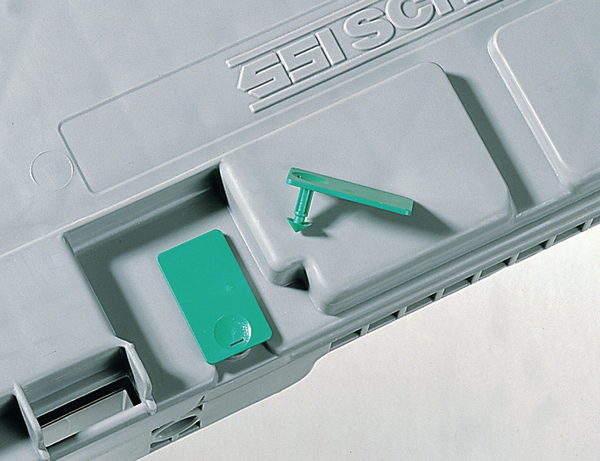

Application A simple to insert and securely located plastic plug seal is required when locking the lid into the box body of a container. This ensures that the lid remains in place during transit and acts as a tamper-evident method of ensuring the contents of the box have not been tampered with or removed. The design of the seal will allow for the lid to move slightly laterally, as is normal when boxes are being stacked or are in transit, and strong enough for small vertical drops (up to 0.5 m) without breaking. The seal is designed to break if the lid is lifted. 30 years of experience in the design and manufacture of plug seals mean that we are uniquely placed to offer products to solve your needs when new lidded box design are being considered.
Colour Green (GN)
Material Polyacetal (POM)
Pack Cont. 2500pcs.
Package Content packed in pcs.
PART DESCRIPTION CCBOX-POM-GN
Product Family Lidded Box Closure Seal
Product Group Plastic plug seals
Self adhesive (Yes/No) No
Short Description Plug-in seal 7 mm green

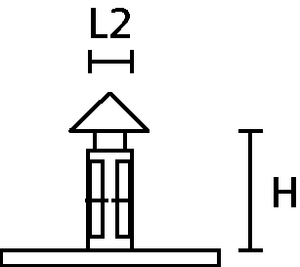

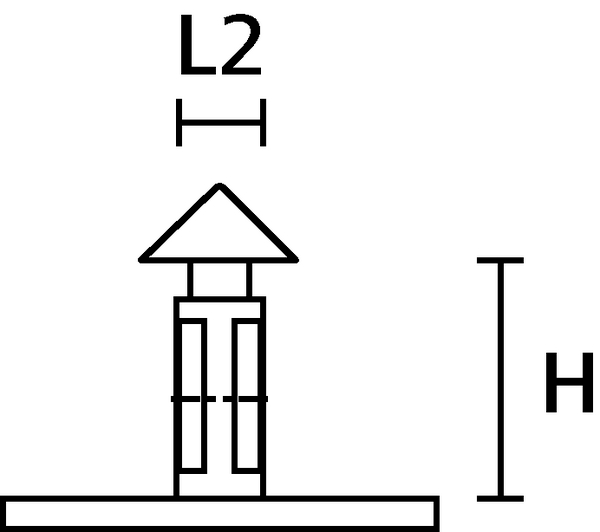

Height (H) 11mm

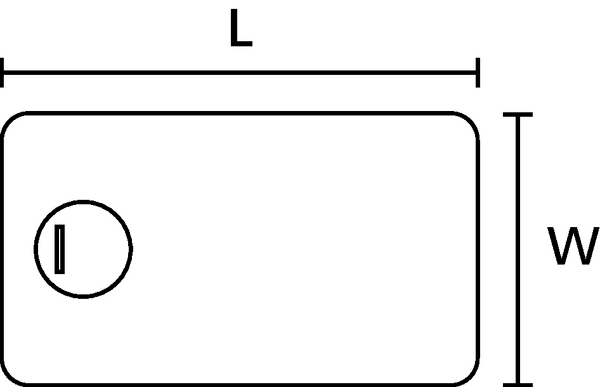

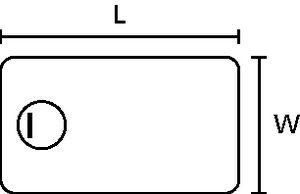

Length (L) 35mm
Length (L2) 7mm
Weight/Unit 0.001558kg
Width (W) 20mm
ELV compliant (Article 4 - 2) YES
Hazardous Goods No
Pre-Printed No
Specifications
Country of Origin DE
Customs Number 39235090
GTIN-13 / EAN 4031026118512
Packaging 1 - Height (m) 0.2m
Packaging 1 - Length (m) 0.47m
Packaging 1 - Qty 2500
Packaging 1 - Type bag
Packaging 1 - Volume (m³) 0.05123
Packaging 1 - Weight (kg) 3.938597kg
Packaging 1 - Width (m) 0.545m
Packaging 3 - Height (m) 0.204m
Packaging 3 - Length (m) 0.591m
Packaging 3 - Qty 7500
Packaging 3 - Type box
Packaging 3 - Volume (m³) 0.048
Packaging 3 - Weight (kg) 12.465791kg
Packaging 3 - Width (m) 0.398m
Packaging 4 - Height (m) 1.164m
Packaging 4 - Length (m) 1.2m
Packaging 4 - Qty 150000
Packaging 4 - Type pallet
Packaging 4 - Volume (m³) 1.117
Packaging 4 - Weight (kg) 270.34kg
Packaging 4 - Width (m) 0.8m
ETIM 7.0 Key EC001288
ETIM 8.0 Key EC001288
ETIM 9.0 Key EC001288
