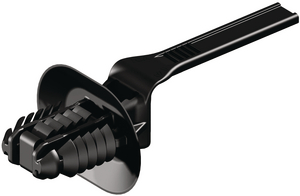

Fixing tie for hole (oval), outside serrated, ∅1.5-35.0mm, black, 1500pcs.
Art.-No. 157-00016
| T50SOS3DOP65X130-E-PA66HS-BK
|
Details
- Cable tie head always situated in defined position
- Easy to assemble without the need for a tool
- Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Versions for oval holes feature anti-twist protection
Request your individual offer now
Request quote
More products in this product group:
Application | Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines. |
Cable Tie | Polyamide 6.6, heat stabilised (PA66HS) |
Colour | Black (BK) |
Fixation Method | Fir Tree for oval holes |
Identification Plate Position | none |
Key product features | products for automatic tools |
Material | Polyamide 6.6, heat stabilised (PA66HS) |
PART DESCRIPTION | T50SOS3DOP65X130-E-PA66HS-BK |
Pack Content | 1500pcs. |
Package Content packed in | bag |
Product Family | for oval holes |
Product Group | 1-Piece Fixing Ties with Fir Tree, with Disc, for Oval Holes |
Releasable Closure (Yes/No) | No |
Tie Closure | plastic pawl |
Type | T50SOS3DOP65X130-E |
Variant | Outside Serrated |
Bundle Diameter max (metric) | 35.0mm |
Bundle ∅ min. | 1.5mm |
Disc ∅ | 0.63 x 0.83" |
Disc ∅ | 16.0 x 21.0mm |
Fixing Hole Shape | Oval |
Height (H) | 1.3mm |
Length (L) | 165.0mm |
Min.Tensile Strength | 180N |
Panel Thickness | 0.03 " – 0.20" |
Panel Thickness max. | 0.7 – 5.0mm |
Panel Thickness max. (imperial) | 0.20" |
Panel Thickness min. (imperial) | 0.028" |
Thickness (T) | 1.3mm |
Width (W) | 4.6mm |
for Hole ∅ (FH) | 6.5 x 13.0 mm |
for Panel Thickness min - max | 0.7 - 5 mm |
for Panel Thickness min - max | 0 - 0.2 " |
|
|
GTIN-13 / EAN | 4031026277189 |
Packaging 1 - Height (m) | 0.2m |
Packaging 1 - Length (m) | 0.55m |
Packaging 1 - Qty | 1500 |
Packaging 1 - Type | bag |
Packaging 1 - Volume (m³) | 0.0715m³ |
Packaging 1 - Weight (kg) | 3.208576kg |
Packaging 1 - Width (m) | 0.65m |
Packaging 3 - Height (m) | 0.538m |
Packaging 3 - Length (m) | 0.584m |
Packaging 3 - Qty | 6000 |
Packaging 3 - Type | box |
Packaging 3 - Volume (m³) | 0.1213m³ |
Packaging 3 - Weight (kg) | 13.934304kg |
Packaging 3 - Width (m) | 0.386m |
Packaging 4 - Height (m) | 1.22m |
Packaging 4 - Length (m) | 1.2m |
Packaging 4 - Qty | 48000 |
Packaging 4 - Type | pallet |
Packaging 4 - Volume (m³) | 1.171m³ |
Packaging 4 - Weight (kg) | 132.488kg |
Packaging 4 - Width (m) | 0.8m |
