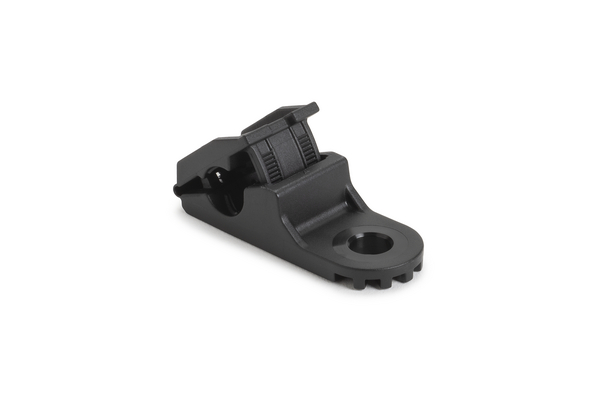

Ratchet P-Clamp
Art.-No. 151-03975 | 4-8RC6.5PH-PA66HIRHSUV-BK Details

  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

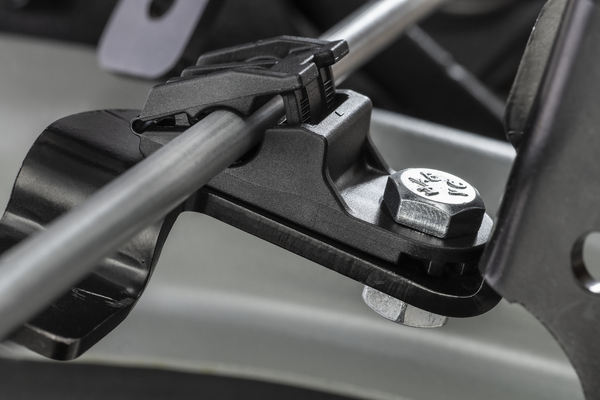

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Colour Black (BK)
Fixation Method Screw Mounting
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION 4-8RC6.5PH-PA66HIRHSUV-BK
Pack Content 100pcs.
Package Content packed in bag
Product Family For bundle diameters from 6.2 mm up to 51.0 mm
Product Group Ratchet P-Clamp
Type 4-8RC6.5PH
Variant Short
Angle 180
Bundle Diameter max (metric) 7.874mm
Bundle ∅ min. 3.81mm
Fixing Hole Centres (F) 0.98"
Fixing Hole Centres (F) 25.1mm
Length (L) 67.7mm
Length (L2) 25.1mm
Min.Tensile Strength 223N
Width (W) 17.5mm
for Hole ∅ (FH) 6.5 mm
CE Certification No
CSA Certified No
Flammability UL 94 HB
Halogen-free Yes
Operating Temperature -40 °C to +105 °C
ROHS compliant Yes
Reusable (Yes/No) Yes
Specifications
UL Listed (US and Canada) No
UL Listed (US and Canada) No
UL Recognized (US and Canada) No
UL Recognized (US and Canada) No
UV-Stabilised Yes
GTIN-13 / EAN 4031026714028
UNSPSC Key 39121702
