21/05/2025

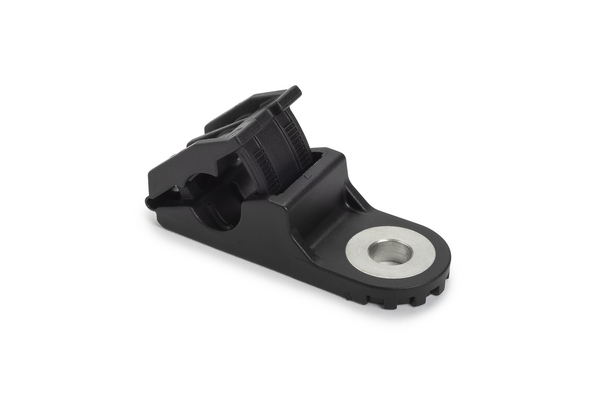

Ratchet P-Clamp
Art.-No. 151-03973 | 4-8RCM8-PA66HIRHSUV-BK

Copied
  • One-piece ratchet closure design allows for easy installation during pre- or final assembly
  • Multiple configurations handle a wide range of diameters and applications, reducing part inventory
  • Clamp interior is designed to guide and center bundle to reduce pinching
  • Easy release feature allows for quick adjustments and maintenance
  • Impact modified, heat and UV stabilized PA66 provides long-term durability, in- and outdoors
  • Steel mounting plate tolerates high torque mounting and is treated to resist chemicals and salt spray
Show more

Request your individual offer now

Application The Ratchet P-Clamp family offers versatility when managing wires, cables and hoses. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This nondestructive release allows the clamp to be reused without removing or replacing any bolts or screws. The Ratchet P-Clamp is offered in four sizes and multiple mounting configurations.
Ausführung Short
Befestigungsart Screw Mounting
Farbe Black (BK)
Inhalt 100ST
Inhalt per pack
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Produktbezeichnung 4-8RCM8-PA66HIRHSUV-BK
Produktfamilie For bundle diameters from 6.2 mm up to 51.0 mm
Produktgruppe Ratchet P-Clamp
Typ 4-8RCM8
Bolzen ⌀ M8
Breite (W) 17.5mm
Bündel ⌀ 3.81-7.874mm
Bündel ⌀ max. 7.874mm
Bündel ⌀ min. 3.81mm
Lochabstand (F) 25.1mm
Lochabstand (F) (imperial) 0.98"
Länge (L) 67.7mm
Länge (L2) 25.1mm
Mindesthaltekraft 223N
Winkel 180
für ⌀ Befestigungsloch (FH) 8.4 mm
Betriebstemperatur -40 °C to +105 °C
Brandschutzeigenschaften UL 94 HB
CE konform No
Halogenfrei Yes
ROHS konform Yes
UL Listung No
UL Listung (gültig in USA) No
UL anerkannt No
UL anerkannt (gültig in USA) No
UV-beständig Yes
Zertifiziert nach CSA No
Zulassungen/Normen
EAN / GTIN 4031026714059
Ursprungsland MX
Verpackung 1 - Beschaffenheit carton
Verpackung 3 - Beschaffenheit bag
Verpackung 3 - Breite (m) 0.1016m
Verpackung 3 - Höhe (m) 0.0000762m
Verpackung 3 - Länge (m) 0.482599999999999m
Verpackung 3 - Volumen (m³) 0
ETIM 7.0 EC000127
ETIM 8.0 Key EC000127
ETIM 9.0 Key EC000127
UNSPSC Code 39121702
