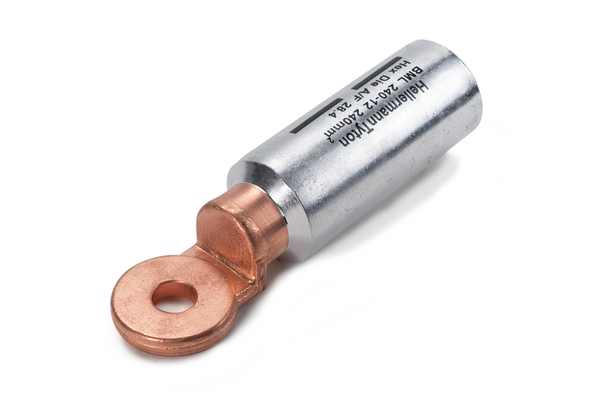

Bi-Metal Lugs
Art.-No. 924-00741 | BML150-10-CU/AL-BN/ML Details

  • Suitable for aluminium conductor and copper terminals or busbar
  • Crimping compound in barrel and sealed with cap
  • Funnel entry to suit flexible cable
  • Chambering 30 degrees

Request your individual offer now

Application A bi-metal lug is used to connect electrical conductors made from different metals: aluminum (AL) and copper (CU). A bi-metal lug is crucial for ensuring a secure, corrosion-resistant, and efficient connection between aluminum and copper conductors in electrical systems. The Lugs are made from the highest quality aluminum and copper and are joined using a friction welding process. The HellermannTyton Lugs comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. A crimping tool is recommended for this application.
Colour Aluminium (AL), Light Brown (LTBN)
Description BI-METAL LUG 150MM² M10 STUD
Material Copper (CU), Aluminium (AL)
PART DESCRIPTION BML150-10-CU/AL-BN/ML
Pack Content 1pc.
Package Content packed in pcs.
Product Family BML-series, Aluminium to Copper
Product Group Bi-Metal Lugs
Type BML150-10

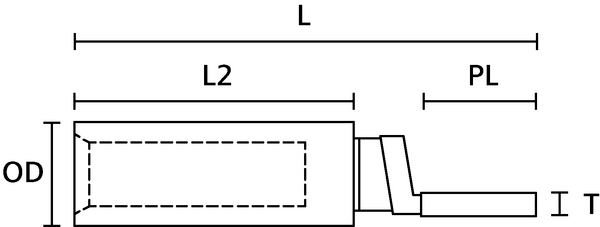

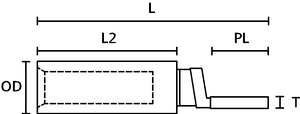

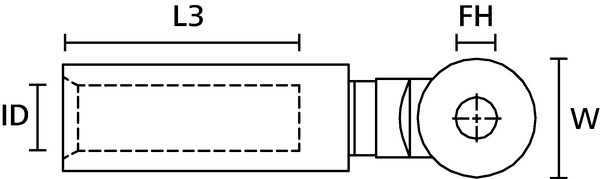

A/F Thread (A/F2) 22mm
Inside Ø (ID) 16.5mm
Length (L) 120mm
Length (L2) 74mm
Length (L3) 60mm
Offset Length 33mm
Outside Ø (OD) 27mm
Thickness (T) 6mm
Width (W) 30mm
for Hole ∅ (FH) M10
Operating Temperature -40 °C to +100 °C
Specifications
Specifications AS/NZS4325 Part 1
Tensile Strength 205MPa
