Copper cable crimp link, conductor size 25mm2, 1pc
Art.-No. 924-00758 | CS25-CU-SR |

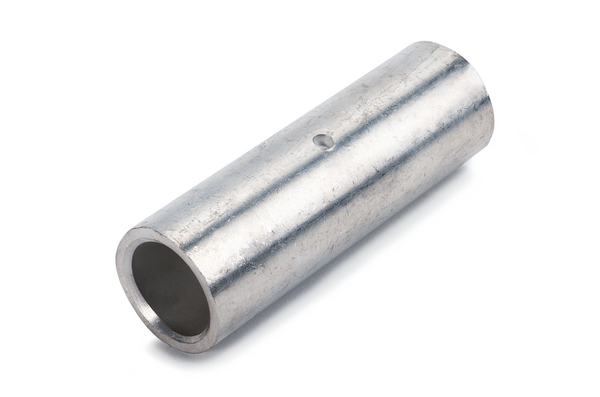

Copper Link, CS series.

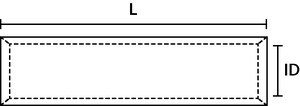

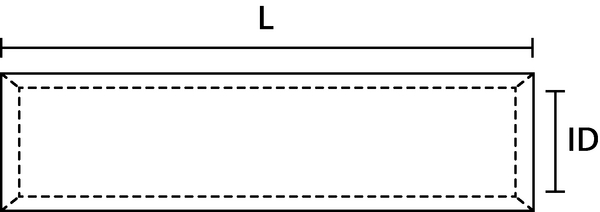

Copper Links Series, Side View

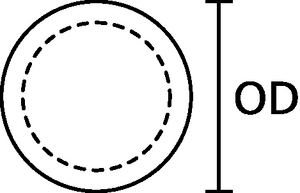

Copper Link Series, End View

Made from high conductivity annealed copper
A heat cycle certification is available on request

Add to watchlist

Request your individual offer now

Request quote

More products in this product group:

Copper Cable Links >

Base Data

Application	Our Copper Links are designed for general-purpose copper conductor applications. They comply with the Australian and New Zealand Standard AS/NZS 4325 Part 1:1995. These links are manufactured from 99.9%+ pure, high-conductivity annealed copper, ensuring optimal electrical properties. They are ideal for use in applications such as connecting electrical wiring in industrial machinery or electrical panels. A crimping tool is recommended for this application.
Colour	Silver-matt (MTSR)
Description	COPPER CRIMP LINK 25MM²
Local order number	CS25
Material	Copper (CU)
PART DESCRIPTION	CS25-CU-SR
Package Content	50pcs.
Package Content packed in	box
Product Family	CS-Series
Product Group	Copper Cable Links
Type	CS25

Product Dimensions

A/F Hex (A/F2)	7.7mm
Cable Size (Strands)	19 x 1.35mm²
Conductor Size (mm²)	25
Inside ⌀ (ID)	7.1mm
Length (L)	47.6mm
Outside ⌀ (OD)	9.5mm
Thickness (T)	2.4mm

Downloads

Specifications

Operating Temperature	-55 °C to +155 °C
Specifications

Logistics and Packaging

GTIN-13 / EAN

9349519001476
