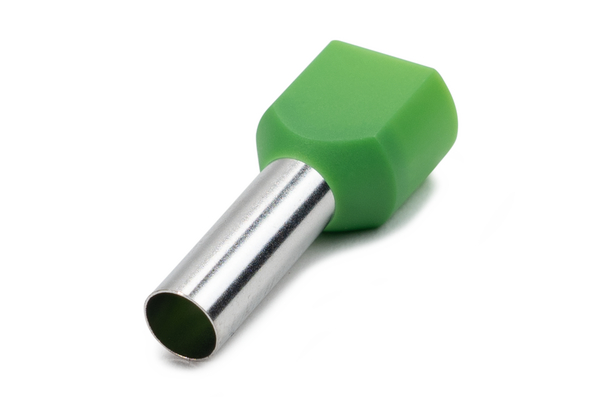

Twin bootlace terminal, conductor size 6mm2, 25pcs, green
Art.-No. 924-00498 | BLT6-CU/PA66-GN

Copied
  • Terminates two wires
  • Colour coded for easier identification
  • Reduces the possibility of short circuiting
  • Packaged in resealable bags
  • REACH compliant

Request your individual offer now

Application Our Bootlace Ferrule range is recommended for precise terminations and applications where fine-stranded multicore cable is used. The Twin Bootlace Ferrule range is designed to terminate two wires in the same terminal. Bootlace ferrules are used to terminate conductors by holding the strands in a thin-walled copper sleeve, which is crimped onto a conductor. A terminal crimping tool is recommended for this application.
Colour Green (GN)
Description Twin Bootlace Ferrule
Local order number BLT6
Material Copper (CU), Polyamide 6.6 (PA66)
Max Voltage 600V
PART DESCRIPTION BLT6-CU/PA66-GN
Package Content 25pcs.
Package Content packed in bag
Product Family Nylon Insulated Twin Bootlace Terminals
Product Group Twin Bootlace Ferrules
Type BLT6
⌀ (D2) 4.8mm
Conductor Size (mm²) 6
Diameter (D) 10mm
Length (L) 26mm
Length (L2) 12mm
Length (L3) 14mm
Width (W) 6.9mm
Halogen-free Yes
Operating Temperature -30 °C to +105 °C
ROHS compliant Yes
Specifications
GTIN-13 / EAN 9349519001223
